Solution

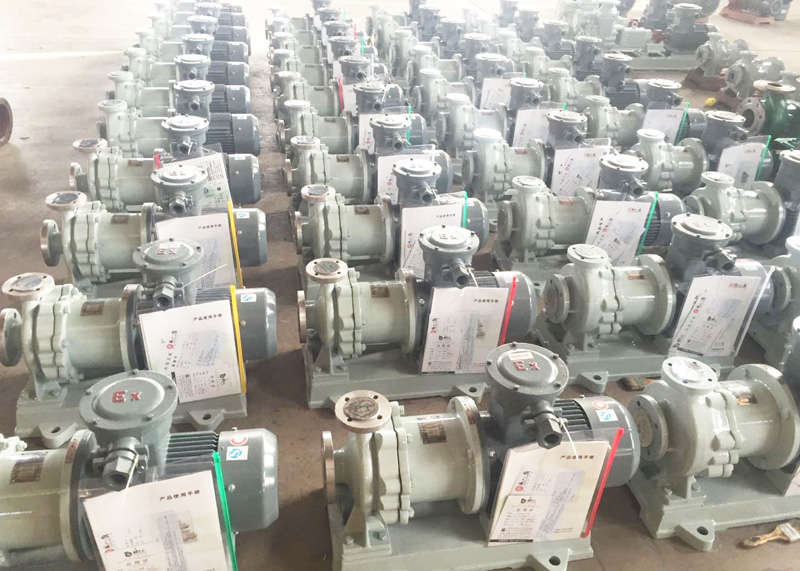

Fluoroplastic magnetic drive pumps replace dynamic sealing with static sealing, ensuring that the pump's flow components are completely sealed. This design effectively eliminates the common drawbacks of mechanical seals in other pumps, such as leakage, spillage, and dripping. The pumps are constructed from corrosion-resistant and high-strength engineering plastics, corundum ceramics, and stainless steel, providing excellent corrosion resistance and preventing contamination of the conveyed medium. Additionally, magnetic drive pumps feature a compact structure, aesthetically pleasing appearance, small size, low noise, reliable operation, and ease of maintenance.

If the flanges of fluoroplastic magnetic drive pumps are not protected, their corrosion rate can accelerate rapidly when exposed to corrosive environments or contaminated industrial atmospheres. Additionally, due to the complex geometry of flange connections, issues such as crevice corrosion between the two flange surfaces and galvanic corrosion between dissimilar metals are highly likely to occur, both of which can severely compromise the integrity of the pipeline system. So, how can flange connections be protected from corrosion?

1. Mechanical Solutions: Primarily involve sealing the flange and the gaps between flange surfaces using protective covers and clamps, typically made of stainless steel or plastic and equipped with rubber sealing strips. This protection method lacks flexibility, as it requires storing covers or clamps that precisely match the dimensions of various flanges.

2. Thermoplastic Solutions: Thermoplastic materials are essentially wax-like fusible polymers that are heated to high temperatures and sprayed onto the substrate surface using specialized melting equipment. The advantage of this method is that the material can be remelted and reused, offering cost savings. However, it requires hot work, specialized equipment, and professional installation services. While reusable, it can be difficult to open and reseal during inspections.

3. Tape or Semi-Solid Anti-Corrosion Tape Solutions: Roll-packaged tapes (such as petroleum jelly tape, wax tape, or elastic polymer wrapping tape) are wrapped around the substrate surface for protection. Due to the excellent waterproofing properties of semi-solid polymers, this method can provide reliable corrosion protection.

4. Maintenance Coating Solutions: Maintenance coatings are hard films that bond directly to the substrate, typically epoxy or polyurethane paints. Flanges have many edges and corners, and conventional paint systems often struggle to effectively cover these edges due to the "edge-thinning" effect. While applying a thicker coating can address edge protection, it may also seal the fasteners, making them impossible to remove during subsequent maintenance. Additionally, operating bolts can damage the coating, necessitating reapplication after repairs.

5. Polymer Sealing Bag Solutions: Sealing bags can completely enclose the flange. Their composition includes low-permeability polymers, vapor-phase corrosion inhibitors, and desiccants. They are easy to install, but the ends of the bags are sealed only with tape rather than a durable mechanical bond. The large vapor space inside the bag can allow moisture to accumulate, and the corrosion inhibitors can be depleted over time.
