The Shengshi Datang GH series floating head shell and tube graphite heat exchanger, commonly referred to as the floating head shell and tube heat exchanger or simply graphite heat exchanger, is one of the product lines offered by Shengshi Datang, a manufacturer with over 20 years of experience in graphite heat exchanger production. The GH series is named for its unique equipment head design and the use of graphite tubes as the heat exchange medium in the internal tube sheet.
This section introduces the three main design features of the Shengshi Datang GH series floating head shell and tube graphite heat exchanger:
1. The design of this equipment focuses on reducing fluid resistance and is available in two configurations: a standard heat exchanger and a standard heat exchanger with a gas-liquid separator condenser.
2. This product is applied in technical renovation projects, with performance values calculated based on the medium diameter of the φ32/22 graphite tubes. For detailed design parameters (design pressure, design temperature, heat exchange area, etc.), please contact the technical team at Shengshi Datang, the graphite heat exchanger manufacturer.
3. The floating head shell and tube heat exchanger is widely used, primarily serving as a cooler, heater, condenser, or reheater. The image below illustrates the structural diagram of the Shengshi Datang GH series floating head shell and tube graphite heat exchanger.

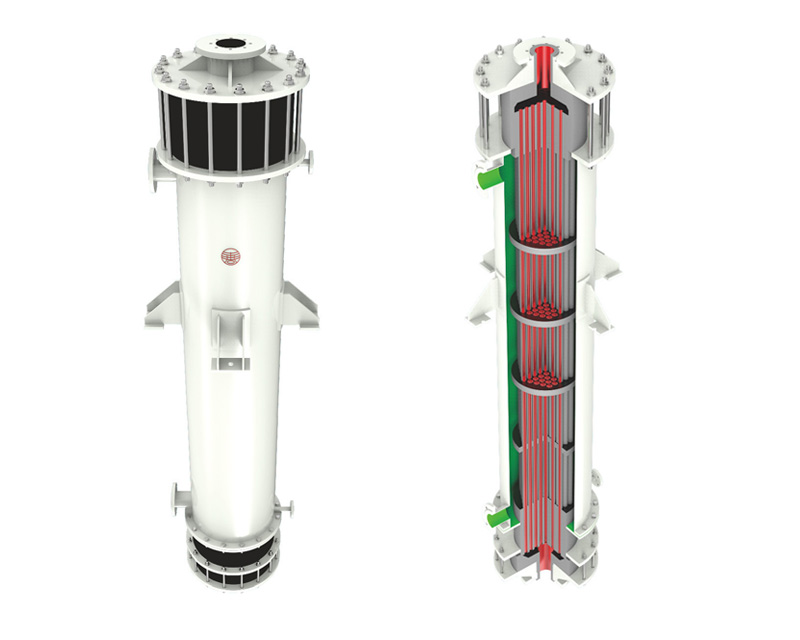

Structural Diagram of the GH Series Floating Head Shell and Tube Graphite Heat Exchanger
If you would like to learn more about graphite corrosion-resistant equipment such as graphite heat exchangers, graphite condensers, graphite falling film absorbers, and graphite heaters, feel free to follow Shengshi Datang Chemical Equipment Co., Ltd.
