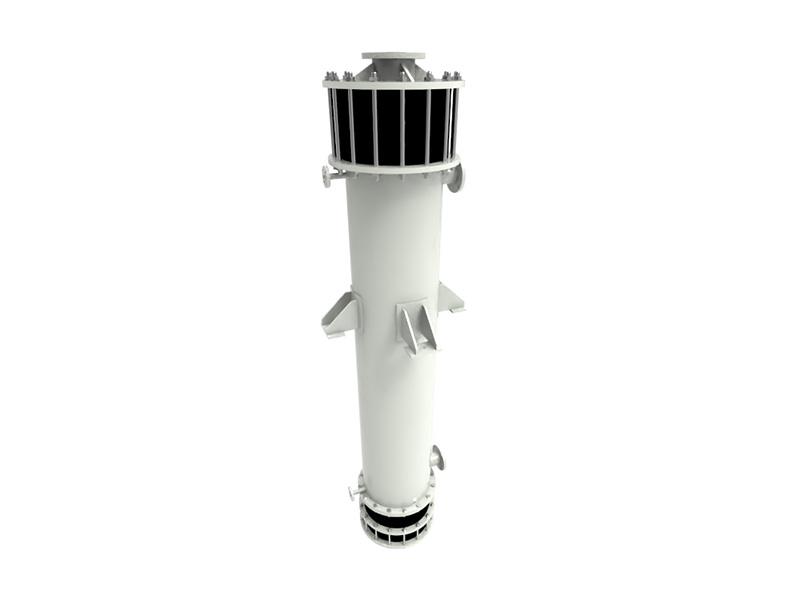

An very dependable and efficient heat transfer device is a GH floating head shell-and-tube graphite heat exchanger. It is made up of tubes, a floating head, a shell, and other parts.
Item No :
GHOrder(MOQ) :
1Color :
CustomizedPackage :
CustomizedMaterial :
GraphiteWorking Temp :
-20 to 140 ℃Working Pressure :
Tube range≤0.2Mpa,Shell range≤0.3Mpa.Floating Head Shell-and-Tube Graphite Heat Exchanger
Large-scale equipment manufacturing is made possible by the equipment's straightforward, small, and fluid-resistant form. But compared to the block hole type, it is less resistant to temperature and pressure. It works well in low-vibration and impact-free environments and is best utilized as a cooling device (condenser).There are two types of this equipment: Type I and Type II. Type II is outfitted with a gas-liquid separator, but Type I lacks one. It is best to utilize Type II as a condenser.
Product Advantages
It is suitable for large-scale applications, has a compact design, exceptional chemical resistance, high heat transfer efficiency, ease of maintenance, and the capacity to withstand changes in pressure and temperature.

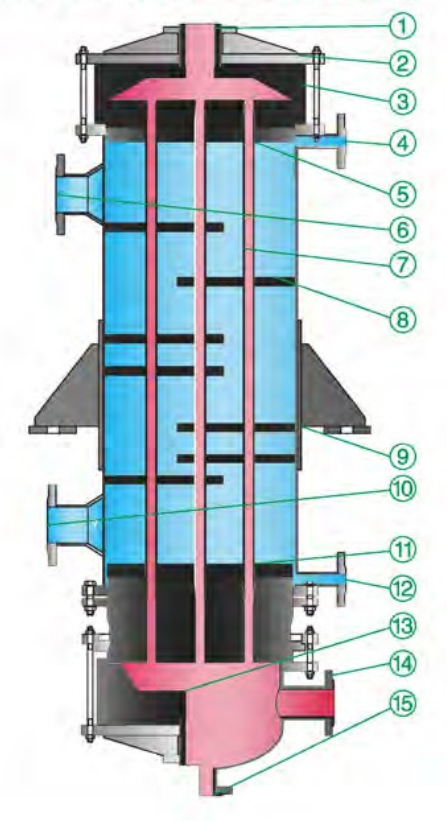

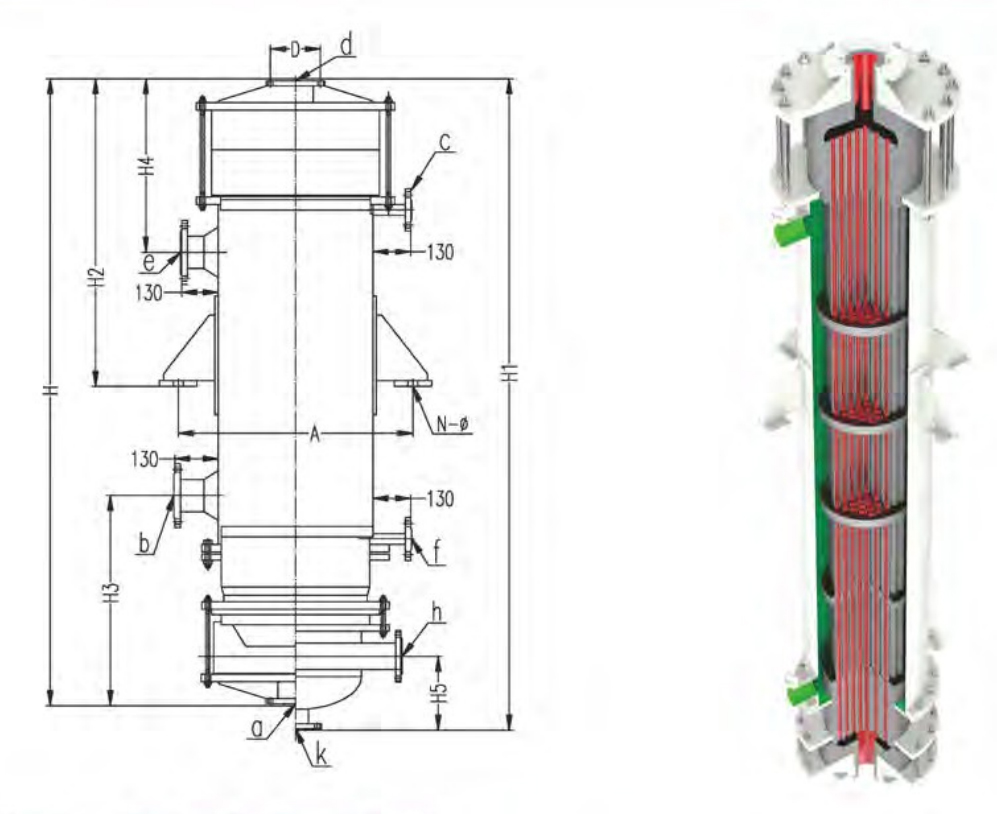

Structural Diagram
| Parts details | |
| 1 | Material import |
| 2 | Upper cover plate |
| 3 | Graphite upperhead |
| 4 | Air defense port |
| 5 | Graphite floating head upper cover plate |
| 6 | Outlet |
| 7 | Graphite heat exchange tube |
| 8 | Graphite baffle |
| 9 | Equipment support |
| 10 | Intake |
| 11 | Graphite floating head lower cover plate |
| 12 | Drain port |
| 13 | Graphite lower head |
| 14 | Exhaust outlet |
| 15 | Material export |
An very dependable and efficient heat transfer device is a GH floating head shell-and-tube graphite heat exchanger. It is made up of tubes, a floating head, a shell, and other parts.
