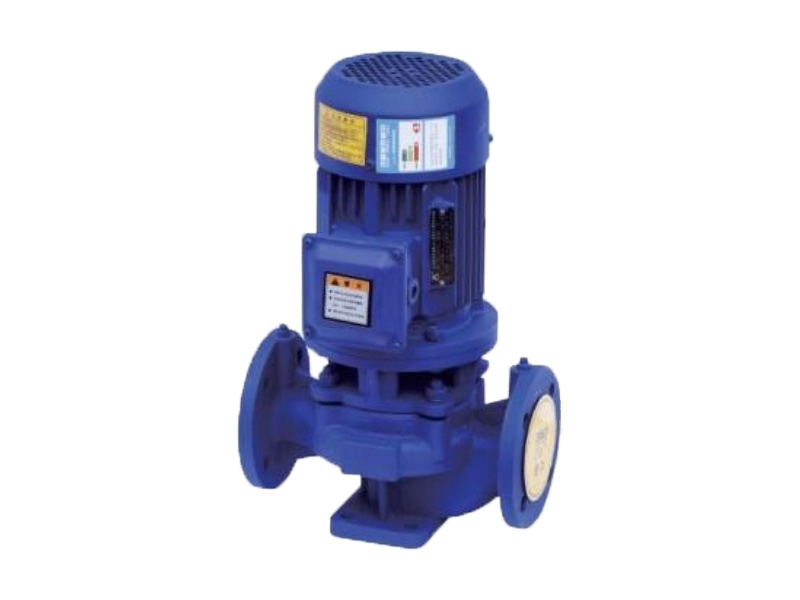

ISG single suction vertical inline centrifugal pump is a compact, energy-efficient single-stage pump designed for HVAC, water supply, and industrial systems, offering quiet operation, easy installation, and reliable performance.
Item No :
ISGOrder(MOQ) :
1Color :
CustomziedPackage :
CustomziedMaterial :
Cast iron/Stainless steelWorking Temp :
＜40℃Single Suction Vertical Inline Centrifugal Pump
ISG single suction vertical inline centrifugal pumps was developed by Shengshi Datang’s technical team in collaboration with domestic pump experts, adopting advanced hydraulic models. Based on the performance parameters of IS-type centrifugal pumps, the ISG series has been scientifically optimized from conventional vertical pumps. To meet the requirements of different temperatures and media, the series has been further extended into multiple specialized models, including hot water pumps, high-temperature pumps, corrosion-resistant chemical pumps, and oil pumps. This product line offers high efficiency, energy savings, low noise, and reliable performance.
Operating Conditions
The ISG single suction vertical inline centrifugal pumps are designed to operate under the following conditions: The suction pressure must be less than 1.0 MPa, and the maximum system working pressure should not exceed 1.6 MPa (calculated as pump inlet pressure plus pump head). The hydrostatic test pressure for the pump is 2.5 MPa. Customers must specify the system working pressure when placing an order. If the system pressure exceeds 1.6 MPa, this must be clearly indicated so that the manufacturer can use cast steel materials for the pump's flow-passing components and connection parts to ensure durability under higher pressures.The pumps are suitable for environments where the ambient temperature does not exceed 40°C and the relative humidity remains below 95%.Regarding the conveyed medium, the solid particle content should not exceed 0.1% by volume, with particle sizes larger than 0.2 mm. If the medium contains fine particles, customers must inform the manufacturer at the time of ordering so that wear-resistant mechanical seals can be provided to enhance the pump's service life under such conditions.
Product Advantages
1. ISG single-suction inline centrifugal pump features a vertical, in-line design with inlet and outlet diameters on the same centerline, allowing easy installation directly into pipelines. Its compact and space-saving structure reduces construction costs, and with a protective cover, it is suitable for outdoor use.
2. The impeller is mounted on the motor’s extended shaft, ensuring a short axial length and compact design. Optimized bearing arrangements balance radial and axial loads, resulting in smooth operation, low vibration, and minimal noise.
3. ISG single suction vertical inline centrifugal pump uses advanced mechanical seal systems with imported titanium alloy sealing rings, medium-temperature-resistant mechanical seals, and hard alloy materials, delivering superior wear resistance and longer service life.
4. Installation and maintenance are extremely convenient, as there is no need to disassemble the pipeline system. Simply removing the pump coupling base nut allows the entire rotor assembly to be easily extracted.
5. ISG single suction vertical inline centrifugal pump can operate in series or parallel configurations to meet varying flow and head requirements.
6. It supports both vertical and horizontal installation to accommodate different pipeline layout needs.
Product Application
The ISG single suction vertical inline centrifugal pump is used for transporting clean water and other liquids with physical properties similar to clean water. It is suitable for industrial and urban water supply and drainage, pressurized water delivery in high-rise buildings, garden sprinkler irrigation, fire protection pressurization, long-distance water delivery, heating, bathroom and other cold and warm water circulation pressurization as well as equipment matching, etc. The operating temperature T is less than 80°C.

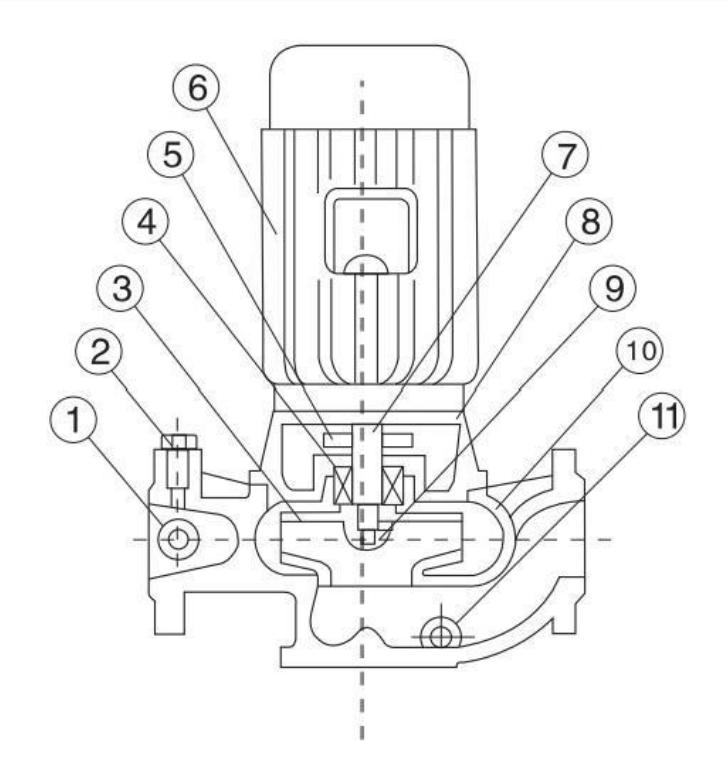

Structural Diagram
| 1 | Pressure Plug | 7 | Shaft |
| 2 | Vent Valve | 8 | Combined Base |
| 3 | Impeller | 9 | Impeller Nut |
| 4 | Mechanical Seal | 10 | Pump Body |
| 5 | Air Deflector | 11 | Drain Valve |
| 6 | Motor |
Structural Description of ISG Type:
Anti-corrosion chemical process centrifugal pump is a type of pump used in the chemical industry for transferring, discharging, feeding, and lubricating various chemicals. It operates on the principle of centrifugal force, where the rotation of the impeller throws the liquid outward, creating a pressure difference that allows the liquid to flow from the inlet to the outlet.
THF fluoroplastic fluorine lined chemical centrifugal pump is a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Full plastic anti-corrosion abrasion resistance electric centrifugal pump —— it uses high - quality plastics for parts like the impeller and shell. This pump has excellent wear resistance, able to handle media with solid particles. It shows great corrosion - resistance to various chemicals. With a well - designed impeller, it operates efficiently with low noise and vibration, suitable for multiple industries.
ISG single suction vertical inline centrifugal pump is a compact, energy-efficient single-stage pump designed for HVAC, water supply, and industrial systems, offering quiet operation, easy installation, and reliable performance.
ISW single stage horizontal end suction centrifugal pump is a single-stage, single-suction design for efficient fluid transfer in pipelines, HVAC, and water supply systems.
S & SH-type single stage double suction centrifugal pump feature high efficiency, balanced axial thrust, and robust construction for large-flow industrial and municipal applications.
The wear-resistant and corrosion resistant slurry pump is engineered for transporting abrasive and corrosive slurries in mining, metallurgy, and chemical industries. With durable materials and robust construction, it ensures long service life, stable performance, and reduced maintenance.
