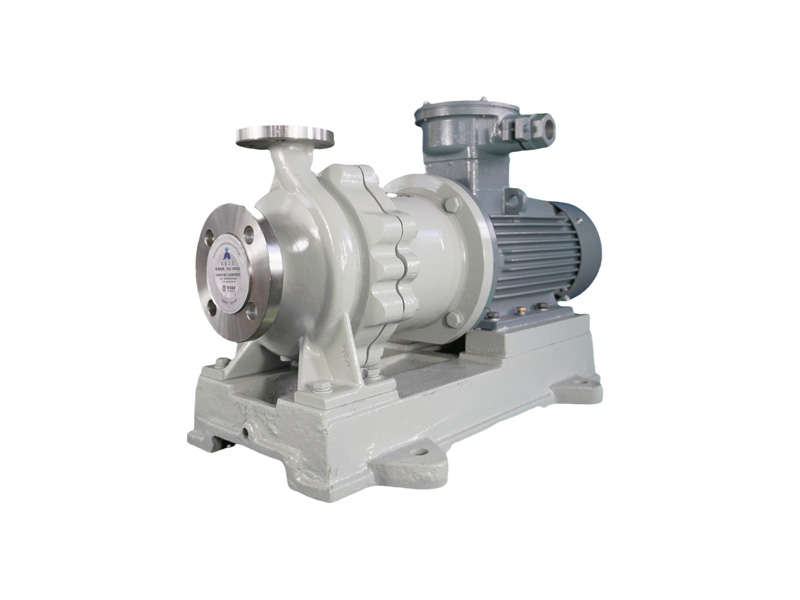

TCH no-leakage stainless steel magnetic pump is characterized by a full-seal design, which effectively eliminates the possibility of leakage. Constructed from stainless steel, it exhibits excellent corrosion resistance. The high-quality magnets incorporated within the pump ensure a reliable magnetic drive, making it well-suited for application in a diverse range of industries.
Item No :
TCHOrder(MOQ) :
1Color :
CustomizedPackage :
CustomizedMaterial :
SteelWorking Temp :
-60 to 300 ℃，New material withstands temperatures up to 450°CWorking Pressure :
1.6 to 6.3 MPaNo Leakage Stainless Steel Magnetic Drive Pump
TCH no leakage stainless steel magnetic drive pump is upgraded and innovated on the basis of TC pump. It independently develops and designs the third generation of new industrial pump with full seal, no leakage and no pollution. It applies the principle of magneto mechanics and the medium is enclosed in the static isolation sleeve to realize the non-contact transmission of torque. The shaft seal device(packing seal or mechanical seal)of traditional centrifugal pump is cancelled, and the static seal is used to replace the dynamic seal to achieve full seal a new leakage free magnetic pump.
Product Advantages
1. The magnet adopts ferrite magnet, Nd-Fe-B and samarium cobalt, which has good magnetism,high temperature resistance and no demagnetization;
2. The shaft sleeve and sliding bearing are made of high wear-resistant silicon carbide, graphite, tetrafluoro and other materials, and equipped with lubrication grooves to effectively ensure the service life of the pump;
3. No leakage. All sealing points are sealed by closed static seal and driven by magnetic coupling. Nitrogen seal is not required, which is safe, economical and efficient.
Product Application
No leakage stainless steel magnetic drive pump is widely used in the transportation of corrosive liquids in the production processes of petroleum,chemical industry, alkali making, smelting, rare earth, pesticide, dye, medicine, paper making, electroplating, electrolysis and so on,especially for the transportation of flammable, explosive, volatile, toxic, high temperature, strong alkali and organic solvents.
Material List
| Part | Material | Part | Material | Part | Material |
| ① Pump body | 304/316/316L | ⑥ Seal ring | Tetrafluoro | ⑪ Pump shaft | 304/316/316L/321 |
| ② Impeller | 304/316/316L | ⑦ Sealing sleeve | 316L/TA2/HC276 | ⑫ Bracket | Permanent magnet/HT200 |
| ③ Impeller nut |
304/316/316L | ⑧ Plain bearing assembly | Carbon fiber/SSIC/Cemented carbide | ⑬ External magnet assembly | HT250/permanent magnet |
| ④ Pump cover | 304/316/316L | ⑨ Thrust disc assembly | Carbon fiber/SSIC/Cemented carbide | ⑭ Electric machinery | Per clients requested |
| ⑤ Thrust disc assembly | Carbon fiber/SSIC/Cemented carbide | ⑩ Internal magnetic assembly | Permanent magnet/304/316/316L/321 | ⑮ Plate | HT200/A3/Channel steel |
Structural Diagram

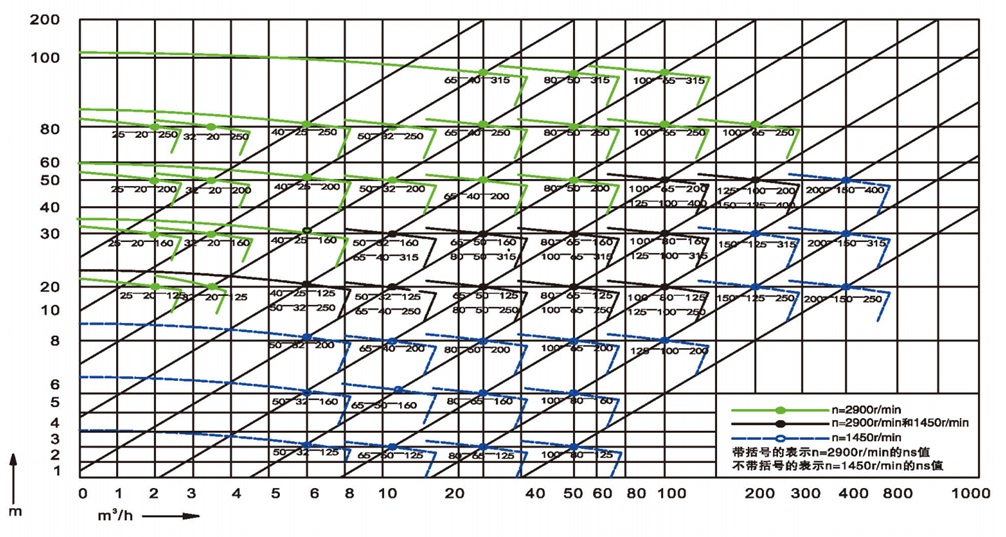

Performance Data
| Type | Rated power | Rated flow | Rated head | Voltage | Pump casing material | Suction |
| 25-20-125 | 1.5 | 2.5 | 20 | 380V | 304/316/316L | 25*20 |
| 25-20-160 | 2.2 | 2.5 | 32 | 380V | 304/316/316L | 25*20 |
| 25-20-200 | 5.5 | 2.5 | 50 | 380V | 304/316/316L | 25*20 |
| 25-20-250 | 11 | 2.5 | 80 | 380V | 304/316/316L | |
| 32-20-125 | 1.5 | 3.2 | 20 | 380V | 304/316/316L | 32*20 |
| 32-20-160 | 2.2 | 3.2 | 32 | 380V | 304/316/316L | 32*20 |
| 32-20-200 | 5.5 | 3.2 | 50 | 380V | 304/316/316L | 32*20 |
| 32-20-250 | 11 | 3.2 | 80 | 380V | 304/316/316L | 32*20 |
| 40-25-125 | 2.2 | 6.3 | 20 | 380V | 304/316/316L | 40*25 |
| 40-25-160 | 3 | 6.3 | 32 | 380V | 304/316/316L | 40*25 |
| 40-25-200 | 5.5 | 6.3 | 50 | 380V | 304/316/316L | 40*25 |
| 40-25-250 | 15 | 6.3 | 80 | 380V | 304/316/316L | 40*25 |
| 40-25-315 | 6.3 | 125 | 380V | 304/316/316L | 40*25 | |
| 50-32-125 | 3 | 12.5 | 20 | 380V | 304/316/316L | 50*32 |
| 50-32-160 | 4 | 12.5 | 32 | 380V | 304/316/316L | 50*32 |
| 50-32-200 | 7.5 | 12.5 | 50 | 380V | 304/316/316L | 50*32 |
| 50-32-250 | 15 | 12.5 | 80 | 380V | 304/316/316L | 50*32 |
| 50-32-315 | 12.5 | 125 | 380V | 304/316/316L | 50*32 | |
| 65-50-125 | 4 | 25 | 20 | 380V | 304/316/316L | 65*50 |
| 65-50-160 | 7.5 | 25 | 32 | 380V | 304/316/316L | 65*50 |
| 65-40-200 | 15 | 25 | 50 | 380V | 304/316/316L | 65*40 |
| 65-40-250 | 22 | 25 | 80 | 380V | 304/316/316L | 65*40 |
| 65-40-315 | 37 | 25 | 125 | 380V | 304/316/316L | 65*40 |
| 65-40-400 | 25 | 380V | 304/316/316L | 65*40 | ||
| 80-65-125 | 7.5 | 50 | 20 | 380V | 304/316/316L | 80*65 |
| 80-65-160 | 15 | 50 | 32 | 380V | 304/316/316L | 80*65 |
| 80-50-200 | 18.5 | 50 | 50 | 380V | 304/316/316L | 80*50 |
| 80-50-250 | 37 | 50 | 80 | 380V | 304/316/316L | 80*50 |
| 80-50-315 | 55 | 50 | 125 | 380V | 304/316/316L | 80*50 |
| 80-50-400 | 50 | 380V | 304/316/316L | 80*50 | ||
| 100-80-125 | 15 | 100 | 20 | 380V | 304/316/316L | 100*80 |
| 100-80-160 | 22 | 100 | 32 | 380V | 304/316/316L | 100*80 |
| 100-65-200 | 37 | 100 | 50 | 380V | 304/316/316L | 100*65 |
| 100-65-250 | 45 | 100 | 80 | 380V | 304/316/316L | 100*65 |
| 100-65-315 | 75 | 100 | 125 | 380V | 304/316/316L | 100*65 |
| 100-65-400 | 100 | 380V | 304/316/316L | 100*65 | ||
| 125-80-160 | 380V | 304/316/316L | 125*80 | |||
| 125-100-200 | 55 | 200 | 50 | 380V | 304/316/316L | 125*100 |
| 125-100-250 | 75 | 200 | 80 | 380V | 304/316/316L | 125*100 |
| 125-100-315 | 22 | 100 | 32 | 380V | 304/316/316L | 125*100 |
| 125-100-400 | 37 | 100 | 50 | 380V | 304/316/316L | 125*100 |
| 150-125-250 | 22 | 200 | 20 | 380V | 304/316/316L | 150*125 |
| 150-125-315 | 45 | 200 | 32 | 380V | 304/316/316L | 150*125 |
| 150-125-400 | 55 | 200 | 50 | 380V | 304/316/316L | 150*125 |
| 200-150-250 | 55 | 400 | 20 | 380V | 304/316/316L | 200*150 |
| 200-150-315 | 75 | 400 | 32 | 380V | 304/316/316L | 200*150 |
| 200-150-400 | 110 | 400 | 50 | 380V | 304/316/316L | 200*150 |
Performance Range
Design pressure: 1.6~6.3MPa, Flow :0.75~460m³/ h , Lift :5~125m, Power :0.55~110KW.
Applicable temperature: -60~300℃, new materials are adopted , and the temperature resistance can reach 450℃.
TCH no-leakage stainless steel magnetic pump is characterized by a full-seal design, which effectively eliminates the possibility of leakage. Constructed from stainless steel, it exhibits excellent corrosion resistance. The high-quality magnets incorporated within the pump ensure a reliable magnetic drive, making it well-suited for application in a diverse range of industries.
TC no leakage magnetic driven pump belongs to the new generation of centrifugal pumps. It is composed of a pump, a magnetic actuator, and a motor. Torque is transferred via magnetic force, thereby preventing leaks. This type of pump is corrosion-resistant and applicable to various industries such as the chemical and pharmaceutical industries.
No leakage fluorine lined magnetic drive pump is characterized by its high corrosion resistance, which is attributed to the fluorine lining. The magnetic drive mechanism ensures a hermetic seal, preventing any leakage, and making it suitable for a wide range of fluid transfer applications.
TCSF no-leakage lining fluorine magnetic drive pump is a remarkable device. It is lined with fluorine, which endows it with excellent corrosion resistance. The magnetic drive mechanism guarantees a leak-free operation, making it an ideal choice for the transfer of fluids in chemical and industrial applications.
