The TCAF Series chemical process non-leakage fluorine magnetic pump utilizes a magnetic coupling for sealing, thereby achieving zero leakage. It is an ideal choice for chemical processes, as it ensures both safety and the stable transfer of fluids.
Item No :
TCAFOrder(MOQ) :
1Color :
CustomizedPackage :
CustomizedMaterial :
SteelWorking Temp :
-30 to 180 ℃Working Pressure :
2.5 MPaChemical Process Non-leakage Fluorine Magnetic Pump
TCAF Series chemical process non-leakage fluorine magnetic pump is designed and developed in accordance with Api685-2000 standard. All flow passage parts are made of fluoroplastics, which can transport corrosive media such as acid, alkali and oxidant with any concentration (strength). The isolation sleeve is made of special materials, which has high-strength mechanical properties and eliminates the pbenomenon of magnetic eddy current in the magnetic pump.
Product Advantages
1. Features an innovative magnetic drive with strong flux concentration and reliable circuit coupling.
2. Pump body and wetted parts are integrally pressed with carbon steel and fluoroplastic lining for enhanced corrosion resistance.
3. Cr13 shaft with fluoroplastic coating prevents fractures common in traditional designs.
4. Silicon carbide bearings with lubrication grooves ensure durability and long service life.
Product Application
It is widely used in the production process transportation of chemical, petrochemical, pharmaceutical, printing and dyeing and other fields, and the clean liquid with a specific gravity of no more than 1.84. It is especially suitable for the transportation of flammable, explosive, toxic, harmful,corrosive and precious liquid media. It can transport inorganic and organic acid solutions such as sulfuric acid, nitric acid, hydrochloric acid and phosphoric acid at various temperatures and concentrations.
Material List
| Part | Material | Part | Material | Part | Material |
| ① Pump body | ZG line F50/PFA | ⑨ Support | Permanent magnetic/45# line F50 | ⑰ Pump coupling | 45# |
| ② Impeller | 45# lineF50 | ⑩ Outer magnet | Permanent magnetic/ZG | ⑱ Diaphragm | 304 |
| ③ Pump shaft | SIC/SSIC | ⑪ Connecting frame | ZG | ⑲ Electric coupling | 45# |
| ④ Shaft sleeve | SIC/SSIC/45 line F50 | ⑫ Front gland of bearing | ZG/A3 | ⑳ Shield | Open type spark free |
| ⑤ Thrust coter | SIC/SSIC | ⑬ Front bearing | Gcr15 | ㉑ Motor | Per client request |
| ⑥ Pump cover | ZG/F50/PFA | ⑭ Bearing box | ZG | ㉒ Floor | ZG/A3 |
| ⑦ Gasket | F4/FKM | ⑮ Back bearing | Gcr15 | ||
| ⑧ Inner magnet | Permanent magnetic/45#steel/F50 | ⑯ Back gland of bearing | ZG/A3 |

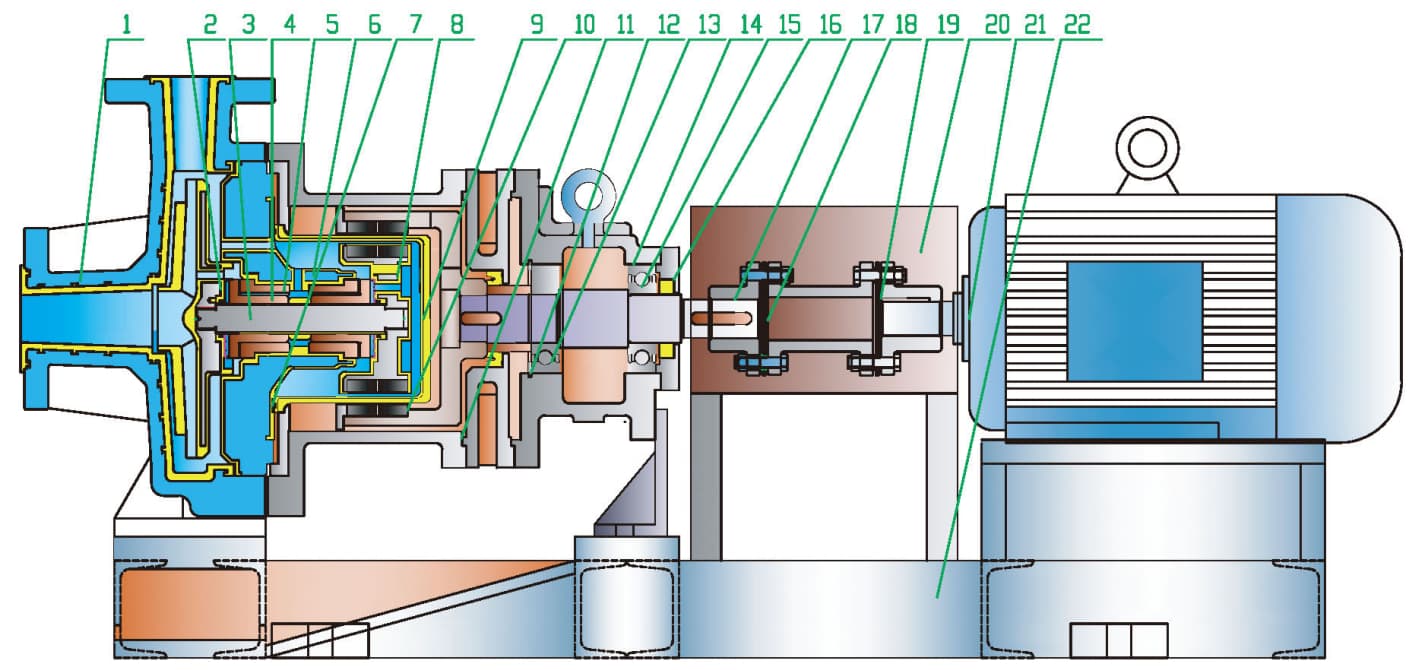

Structural Diagram

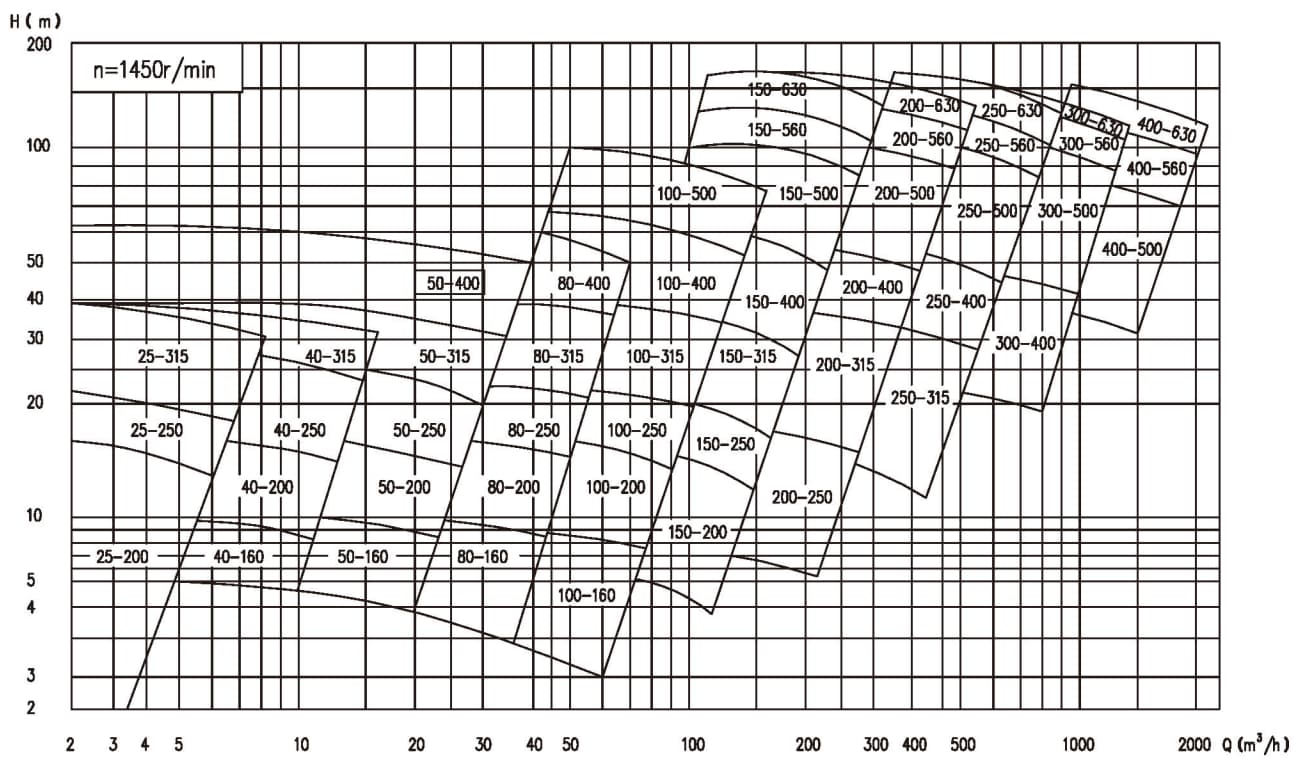

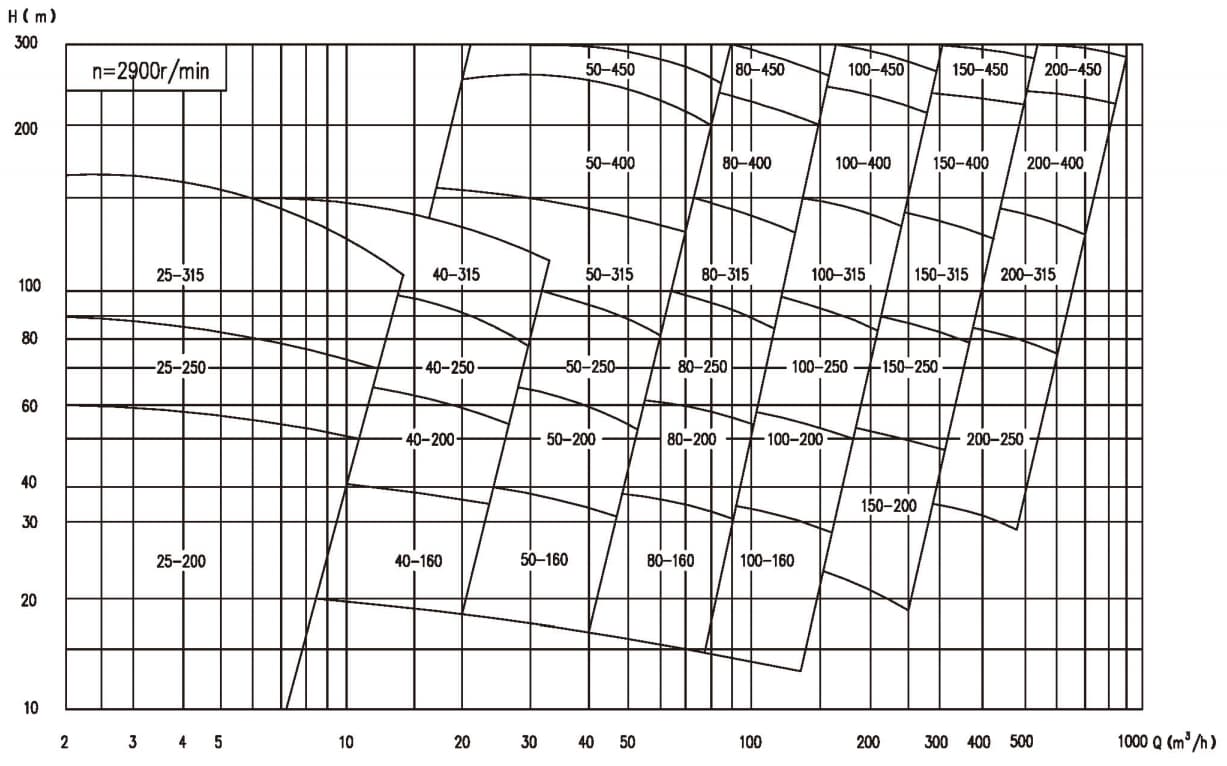

Performance Range
Performance Range:
caliber: 25～400mm
design pressure: 2.5~5.0mpa,
flow: 5.5~2750m³/h
lit: 16~250m
power: 2.2~500kW
Applicable temperature:-80~120℃(TZA);-80～450℃(TZE).
The TCAF Series chemical process non-leakage fluorine magnetic pump utilizes a magnetic coupling for sealing, thereby achieving zero leakage. It is an ideal choice for chemical processes, as it ensures both safety and the stable transfer of fluids.
The TCA/E no-leakage petrochemical magnetic pump is specifically engineered for application in the petrochemical industry. Its most notable feature is the absence of leakage, which significantly enhances operational safety. By virtue of being constructed with high-quality materials and incorporating advanced technological elements, this pump offers a high degree of reliability.
TZA/E series chemical process pumps are designed and produced in accordance with API610 and VDMA24297 specifications. TZA pump body is supported by feet and TZE pump body is the central support. Single suction radial impeller, axial suction, radial discharge.
The China standard horizontal chemical process pump is designed for efficient and reliable chemical fluid handling. Built with corrosion-resistant materials and robust construction, it delivers stable performance under harsh operating conditions. Widely used in petrochemical, chemical, and industrial applications, it ensures durability, safety, and cost-effective operation.
The graphite chemical process centrifugal pump is designed for safely handling corrosive and abrasive chemicals. With graphite components, it offers excellent chemical resistance, reliable operation, and low maintenance, making it ideal for transferring acids, alkalis, and aggressive liquids in chemical processing applications.
