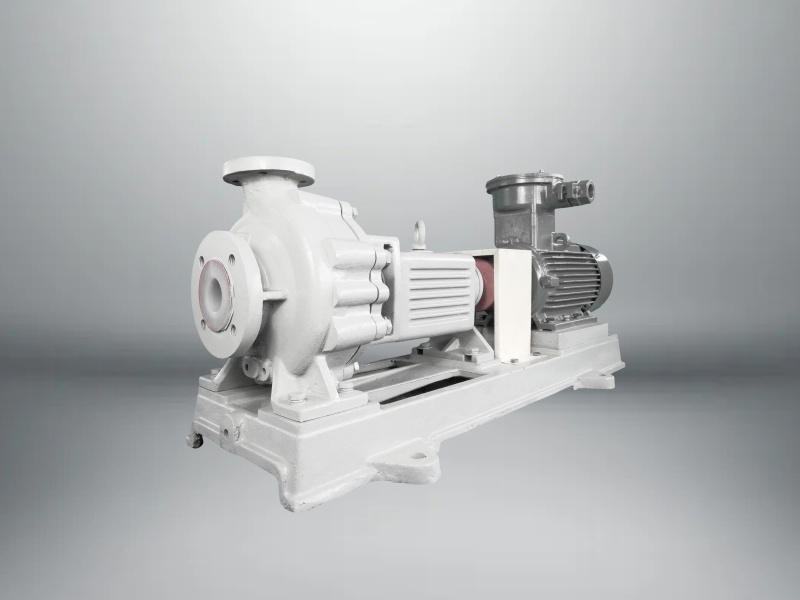

THF fluoroplastic fluorine lined chemical centrifugal pump is a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Item No :
THFOrder(MOQ) :
1Color :
CustomziedPackage :
CustomziedMaterial :
Fluoroplastic alloy/SteelWorking Temp :
-20 to 120 ℃Working Pressure :

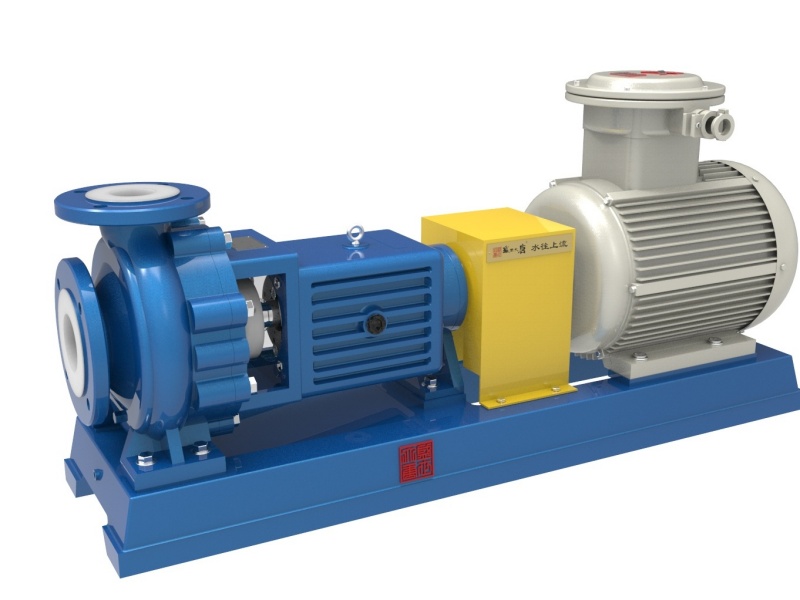

1.6 MPaFluoroplastic Fluorine Lined Chemical Centrifugal Pump
The third generation improved product of THF fluoroplastic fluorine lined chemical centrifugal pump is designed and manufactured according to international standards and combined with the process design of non-metallic pump. It is suitable for long-term transportation of various corrosive media such as strong acid, alkali, salt and strong oxidant with arbitrary concentration. Its shell is lined with metal shell, and all its overflow parts are made of plastic alloy.
Product Advantages
1.THF fluorine lined centrifugal pump is designed and manufactured according to international standards and combined with the process of non-metallic pump. It has the advantages of corrosion resistance, high temperature resistance, no aging, high mechanical strength, high efficiency and energy saving.
2.The shaft seal adopts advanced external bellows mechanical seal, and the mechanical seal can be adjusted without disassembly. The sealing surface of the grinding can be equipped with silicon carbide, pressureless sintered silicon carbide, ceramics, tetra fluorocarbon, cemented carbide and other materials, so as to meet the requirements of conveying various media and ensure the service life of the mechanical seal.
Product Application
Fluoroplastic fluorine lined chemical centrifugal pump is widely used in petroleum, chemical industry, acid making, alkali making, smelting, rare earth, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling and other production processes to transport corrosive liquids.
Material List
| Part | Material | Part | Material | Part | Material |
| ①pump body | HT200/fluorine alloy lined | ⑧shaft | 304/316/316L | ⑮ gland of back bearing | HT200 |
| ②impeller | fluoroplastic alloy | ⑨bracket | HT200 | ⑯ pump coupling | 45# |
| ③gasket | fluorubber | ⑩gland of front bearing | HT200 | ⑰ diaphragm | 304 |
| ④pump cover | HT200/fluorine alloy lined | ⑪ frontbearing | rolling bearing | ⑱ electric coupling | 45# |
| ⑤static ring | silicon carbide/hard alloy | ⑫ bearing box | HT200 | ⑲ shield | 304 |
| ⑥seal gland | 304/316/316L | ⑬ back bearing | rolling bearing | ⑳ motor | as client request |
| ⑦dynamic ring | silicon carbide/hard alloy | ⑭ pull rod | 45# | ㉑plate | HT200 |

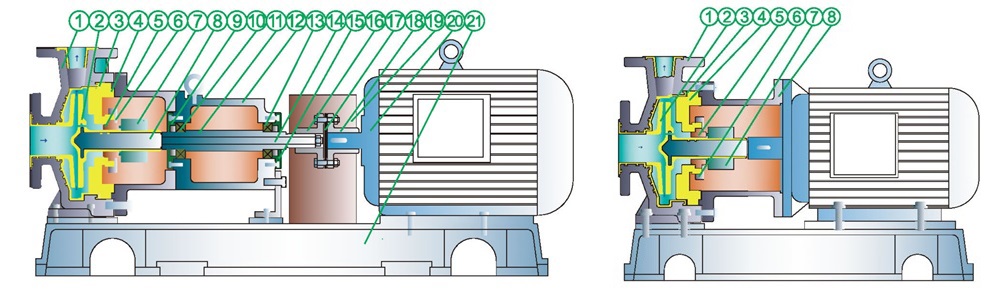

Structural Diagram

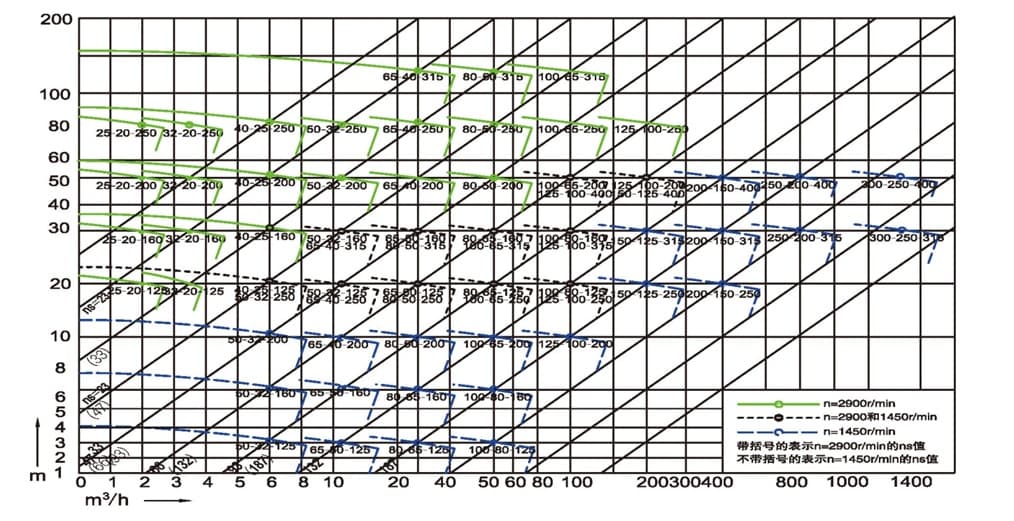

Performance Data
| Model | Rated power | Rated flow | Rated head | Voltage | Pump body material | Inlet size |
| 25-20-125 | 1 | 2.5 | 20 | 380V | F46 | 25*20 |
| 25-20-160 | 2.2 | 2.5 | 32 | 380V | F46 | 25*20 |
| 25-20-200 | 4 | 2.5 | 50 | 380V | F46 | 25*20 |
| 25-20-250 | 11 | 2.5 | 80 | 380V | F46 | 25*20 |
| 32-20-125 | 1.5 | 3.2 | 20 | 380V | F46 | 32*20 |
| 32-20-160 | 2.2 | 3.2 | 32 | 380V | F46 | 32*20 |
| 32-20-200 | 4 | 3.2 | 50 | 380V | F46 | 32*20 |
| 32-20-250 | 11 | 3.2 | 80 | 380V | F46 | 32*20 |
| 40-25-125 | 1.5 | 6.3 | 20 | 380V | F46 | 40*25 |
| 40-25-160 | 2.2 | 6.3 | 32 | 380V | F46 | 40*25 |
| 40-25-200 | 5.5 | 6.3 | 50 | 380V | F46 | 40*25 |
| 40-25-250 | 11 | 6.3 | 80 | 380V | F46 | 40*25 |
| 40-25-315 | 6.3 | 125 | 380V | F46 | 40*25 | |
| 50-32-125 | 2.2 | 12.5 | 20 | 380V | F46 | 50*32 |
| 50-32-160 | 0.55 | 12.5 | 32 | 380V | F46 | 50*32 |
| 50-32-200 | 7.5 | 12.5 | 50 | 380V | F46 | 50*32 |
| 50-32-250 | 11 | 12.5 | 80 | 380V | F46 | 50*32 |
| 50-32-315 | 12.5 | 125 | 380V | F46 | 50*32 | |
| 65-50-125 | 3 | 25 | 20 | 380V | F46 | 65*50 |
| 65-50-160 | 5.5 | 25 | 32 | 380V | F46 | 65*50 |
| 65-40-200 | 11 | 25 | 50 | 380V | F46 | 65*50 |
| 65-40-250 | 18.5 | 25 | 80 | 380V | F46 | 65*50 |
| 65-40-315 | 30 | 25 | 125 | 380V | F46 | 80*65 |
| 80-65-125 | 5.5 | 50 | 20 | 380V | F46 | 80*65 |
| 80-65-160 | 11 | 50 | 32 | 380V | F46 | 80*65 |
| 80-50-200 | 15 | 50 | 50 | 380V | F46 | 80*50 |
| 80-50-250 | 30 | 50 | 80 | 380V | F46 | 80*50 |
| 80-50-315 | 45 | 50 | 125 | 380V | F46 | 80*50 |
| 100-80-125 | 11 | 100 | 20 | 380V | F46 | 100*80 |
| 100-80-160 | 15 | 100 | 32 | 380V | F46 | 100*65 |
| 100-65-200 | 30 | 100 | 50 | 380V | F46 | 100*65 |
| 100-65-250 | 45 | 100 | 80 | 380V | F46 | 100*65 |
| 100-65-315 | 75 | 100 | 125 | 380V | F46 | 100*65 |
| 125-80-160 | 55 | 160 | 32 | 380V | F46 | 125*80 |
| 125-100-200 | 55 | 200 | 50 | 380V | F46 | 125*100 |
| 125-100-250 | 75 | 200 | 80 | 380V | F46 | 125*100 |
| 125-100-315 | 18.5 | 200 | 125 | 380V | F46 | 125*100 |
| 125-100-400 | 37 | 200 | 50 | 380V | F46 | 125*100 |
| 150-125-250 | 22 | 200 | 20 | 380V | F46 | 150*125 |
| 150-125-315 | 45 | 200 | 32 | 380V | F46 | 150*125 |
| 150-125-400 | 75 | 200 | 50 | 380V | F46 | 150*125 |
| 200-150-250 | 45 | 400 | 20 | 380V | F46 | 200*150 |
| 200-150-315 | 75 | 400 | 32 | 380V | F46 | 200*150 |
| 200-150-400 | 110 | 400 | 50 | 380V | F46 | 200*150 |
| 250-200-250 | 160 | 800 | 50 | 380V | F46 | 250*200 |
| 250-200-315 | 110 | 800 | 32 | 380V | F46 | 250*200 |
Performance Range
Design pressure: 1.6MPa,
Flow rate: 0.75 ~1550m³/h,
Head: 3~125m,
Power: 1.1~ 400kw.
Applicable temperature: -20~120℃, using new materials resistant to temperature up to 180℃.
Anti-corrosion chemical process centrifugal pump is a type of pump used in the chemical industry for transferring, discharging, feeding, and lubricating various chemicals. It operates on the principle of centrifugal force, where the rotation of the impeller throws the liquid outward, creating a pressure difference that allows the liquid to flow from the inlet to the outlet.
THF fluoroplastic fluorine lined chemical centrifugal pump is a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Full plastic anti-corrosion abrasion resistance electric centrifugal pump —— it uses high - quality plastics for parts like the impeller and shell. This pump has excellent wear resistance, able to handle media with solid particles. It shows great corrosion - resistance to various chemicals. With a well - designed impeller, it operates efficiently with low noise and vibration, suitable for multiple industries.
ISG single suction vertical inline centrifugal pump is a compact, energy-efficient single-stage pump designed for HVAC, water supply, and industrial systems, offering quiet operation, easy installation, and reliable performance.
ISW single stage horizontal end suction centrifugal pump is a single-stage, single-suction design for efficient fluid transfer in pipelines, HVAC, and water supply systems.
S & SH-type single stage double suction centrifugal pump feature high efficiency, balanced axial thrust, and robust construction for large-flow industrial and municipal applications.
The wear-resistant and corrosion resistant slurry pump is engineered for transporting abrasive and corrosive slurries in mining, metallurgy, and chemical industries. With durable materials and robust construction, it ensures long service life, stable performance, and reduced maintenance.
