The TCA/E no-leakage petrochemical magnetic pump is specifically engineered for application in the petrochemical industry. Its most notable feature is the absence of leakage, which significantly enhances operational safety. By virtue of being constructed with high-quality materials and incorporating advanced technological elements, this pump offers a high degree of reliability.
Item No :
TCA/EOrder(MOQ) :
1Color :
CustomizedPackage :
CustomizedMaterial :
SteelWorking Temp :
-60 to 300 ℃，New material withstands temperatures up to 450°CWorking Pressure :
2.5 to 5.0 MpaNo Leakage Petrochemical Magnetic Pump
TCA series leakage free magnetic drive centrifugal chemical process pump is a world leading high-tech product developed by introducing German technology inaccordance with API685-2000 sealless centrifugal pump for petroleum,heavy chemical and natural gas industry.
Product Advantages
1. Pump material: 304, 316, 904L, dual phase steel, Titanium alloy, Hastelloy, etc.
2. Manufacturing standard: in accordance with Api685-2000 standardproduction, TCAfoot supportandTCE center support.
3. The magnet is a new type ofpermanent magnet with good magnetism, high temperatureresistance andnodemagnetization;
4. The shaft sleeve and sliding bearing adopt high wear-resistant silicon carbide(SSIC)and are equipped with lubrication grooves to effectively ensure the service life of the pump;
Product Application
Material List
| Part | Material | Part | Material | Part | Material |
| 102 Pump body | 304/316/316L | 545.1 Bearing bushing | 304/316/316L | 545 Slide bearing | SSic/hard alloy |
| 230 Impeller | 304/316/316L | 890 Base plate | HT200/45 | 529.1 Bearing sleeve | SSic/hard alloy |
| 161 Pump cover | 304/316/316L | 213 Driven plate | 2Cr13 | 314 Thrust collar | SSic/hard alloy |
| 817 Distance sleeve | 316L/TA2/HC276 | 183 Bracket plate | HT 200 | 922 Impeller nut | 304/316/316L |
| 818.1 Outer magnet component | Permenant magnet/ZG | 152 Cooling bracket | 45 | 512 Wearing ring | 304/316/316L |
| 146 Bracket | HT 200 | 921 Locknut | 45 | 321 Ball bearing | Gcr15 |
| 330 Bearing box | HT 200 | 921.1 Locknut | 304/316/316L | 525 Bearing bushing | 45 |
| 360 Bearing gland | HT 200 | 818.2 Rotor assembly | Permenant magnet/304/316/316L | 400 Sealing gasket | PTFE |
| 681 Shield | 45/Aluminium | 211 Pump shaft | 304/316/316L | 400.1 Sealing gasket | PTFE |
| 840 Coupling | HT200/45 | 421 Oil seal | Fluorubber |

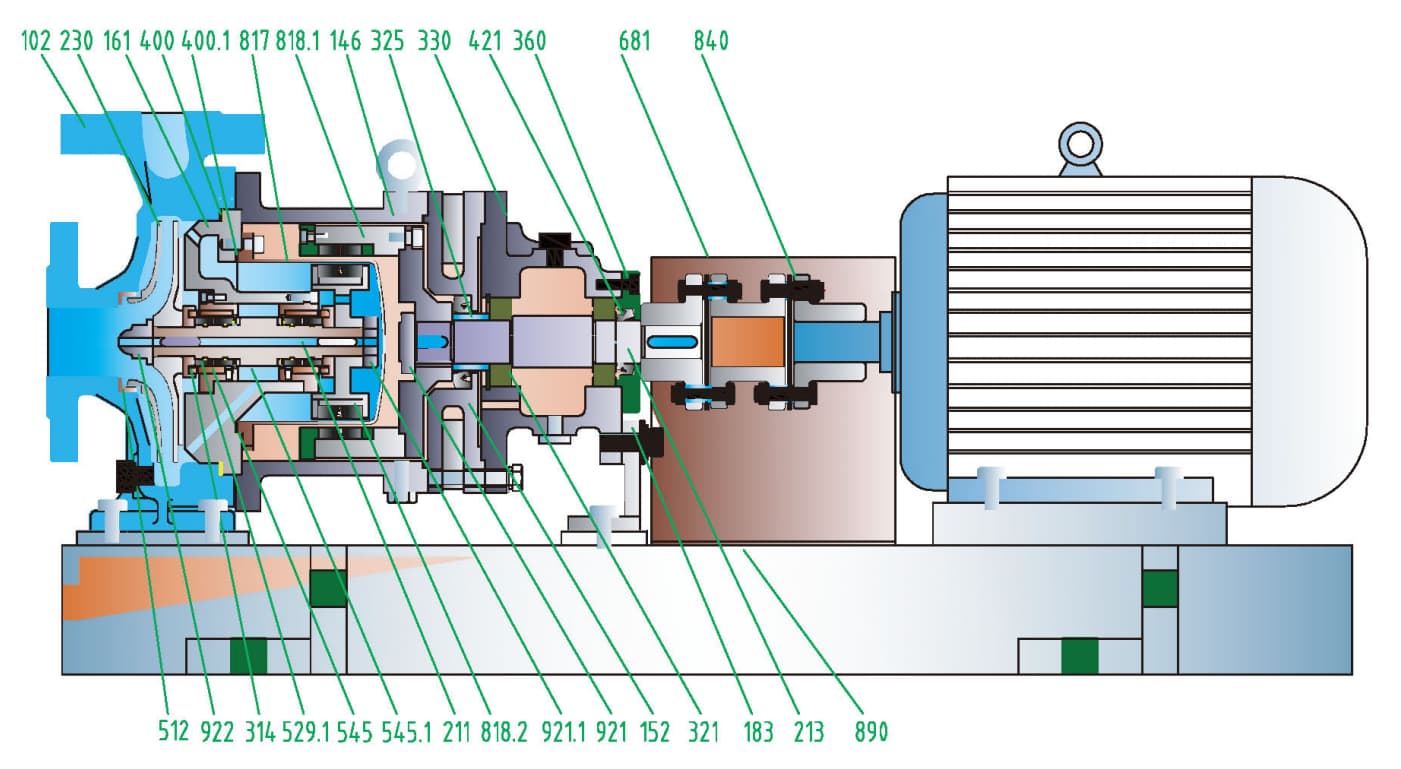

Structural Diagram

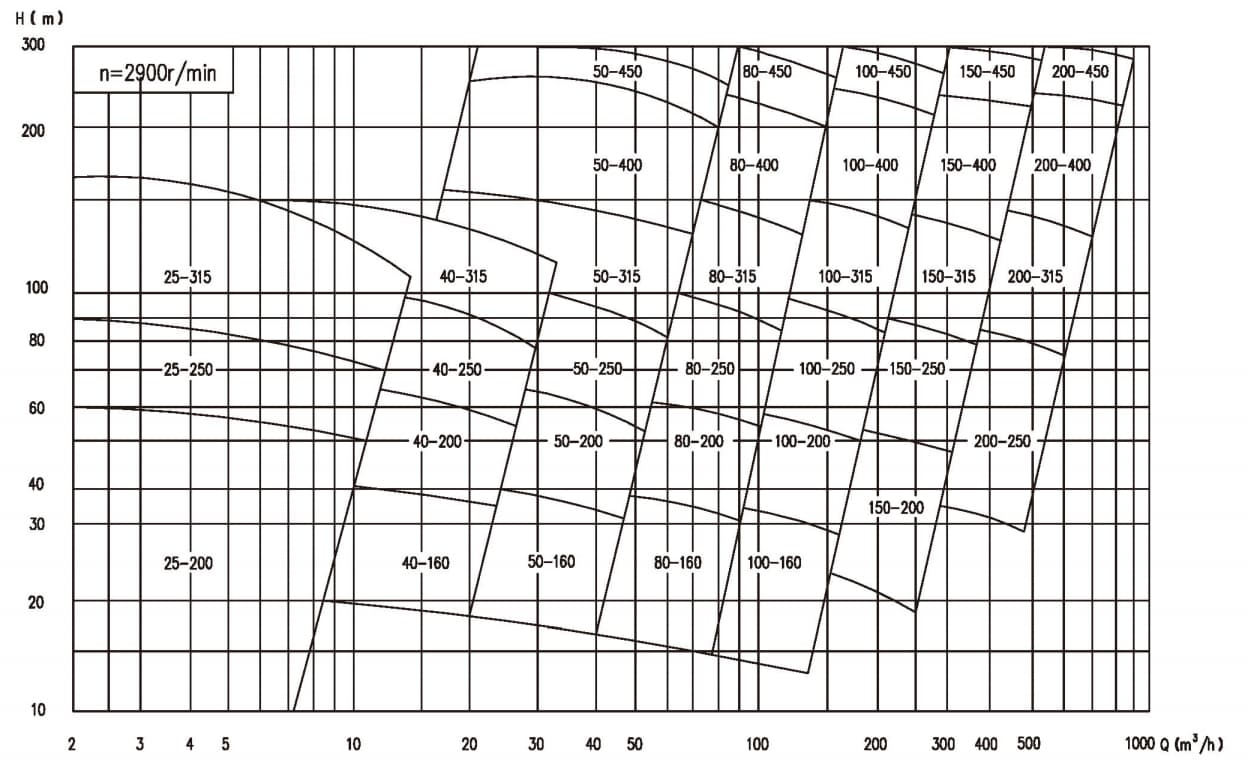

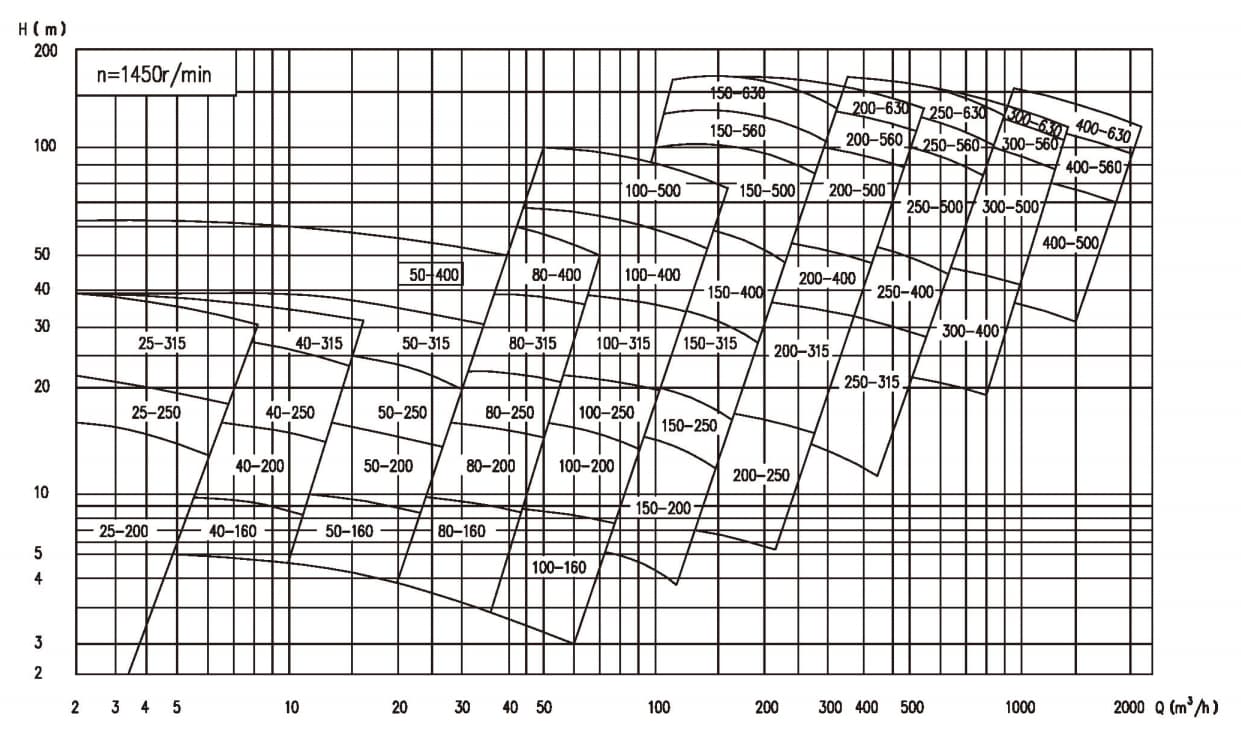

Performance Range
Performance Range:
design pressure: 2.5～5.0mpa
flow: 5.5~1900m³/h
lift: 16~250m
power: 2.2~500kW
Applicable temperature: -60~300℃, new materials are adopted, and the temperature resistance can reach 450℃.
