TZA/E series chemical process pumps are designed and produced in accordance with API610 and VDMA24297 specifications. TZA pump body is supported by feet and TZE pump body is the central support. Single suction radial impeller, axial suction, radial discharge.
Item No :
TZA/ECentrifugal Chemical Process Pump For Petrochemical Industry
TZA/E series centrifugal chemical process pump for petrochemical industry is engineered for reliable fluid transfer in demanding conditions. Featuring corrosion-resistant materials, high efficiency, and stable operation, it ensures safe handling of acids, solvents, and high-temperature media. Ideal for refineries, chemical plants, and industrial processing applications.
Product Advantages
1. This series of chemical process pumps adopts standard pipelines and is designed according to API specifications.
2. The pump body and the bearing frame are connected by an intermediate connecting section1.
3. Packing seal, single and double face mechanical seal and cartridge single face mechanical seal can be adopted.
Product Application
This type of pump is suitable for oil refinery, petrochemical industry, coal processing engineering, low temperature engineering, paper industry, sugar industry, water supply plant, seawater desalination plant, power plant, environmental protection engineering and shipbuilding industry. Viewed from the motor end, the rotation direction of the pump is clockwise.
Material List
| No. | Part | No. | Part | No. | Part |
| 102.00 | pump body | 330.00 | bearing bradket | 320.00 | roling bearing |
| 922.00 | impele nut | 433.00 | seal | 921.00 | round nut |
| 512.00 | choma of pumpbody | 471.00 | gland | 211.00 | pump shaft |
| 230.01 | choma of impeler nut | 524.00 | shaft sleeve | 183.00 | stand bar |
| 230.00 | impeller | 507.01 | dust-free plate | 644.00 | oil slinger |
| 161.01 | choma of impeler cover | 360.00 | bearing gland | 638.01 | oil window |
| 230.02 | impeler choma | 922.01 | lifting ning | 915.00 | snap ring |
| 161.00 | pump cover | 672.00 | oil and gas separator | 320.01 | roling bearing |
| 400.01 | gasket | 638.00 | oil cup |

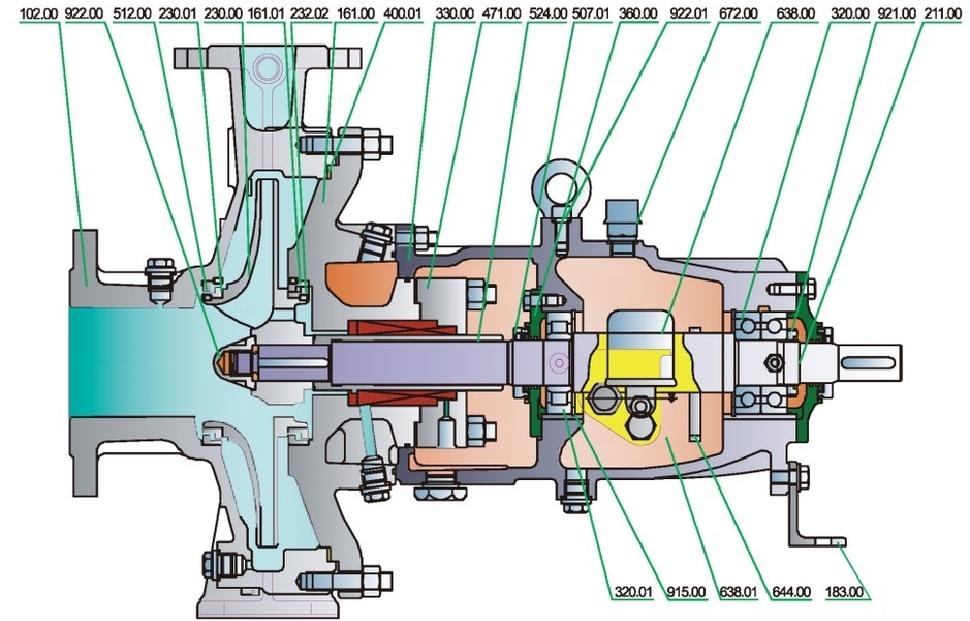

Structural Diagram
Performance Range

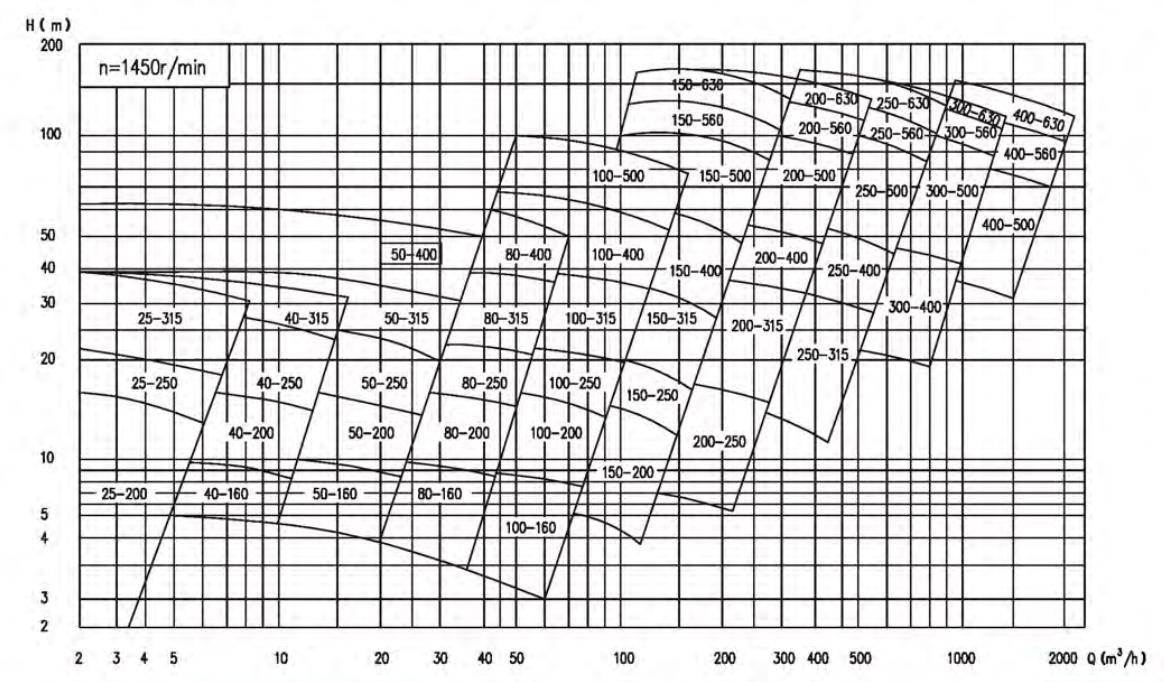

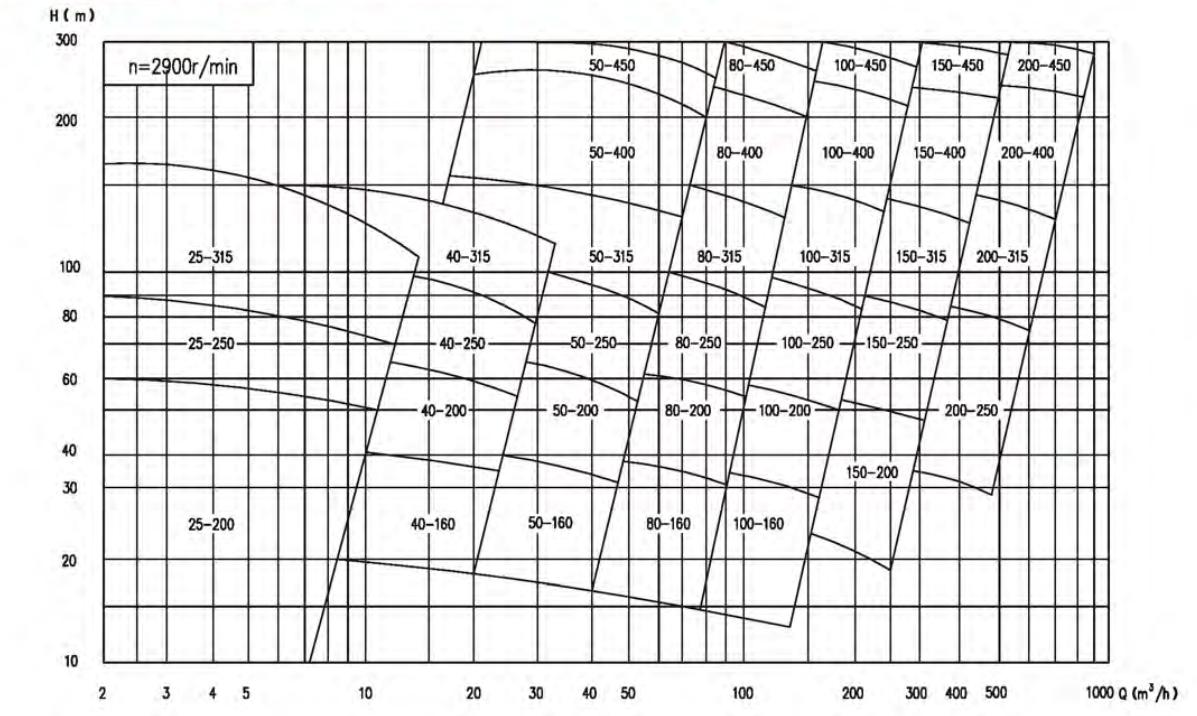

Performance range: caliber: 25 ~ 400mm, design pressure; 2.5 ~ 5.0mpa, flow: 5.5~ 2750m’/h, lift: 16 ~ 250m, power:2.2 ~ 500kW
Applicable temperature: -80-120C(TZA); -80 ~ 4509C(TZE).
The TCAF Series chemical process non-leakage fluorine magnetic pump utilizes a magnetic coupling for sealing, thereby achieving zero leakage. It is an ideal choice for chemical processes, as it ensures both safety and the stable transfer of fluids.
The TCA/E no-leakage petrochemical magnetic pump is specifically engineered for application in the petrochemical industry. Its most notable feature is the absence of leakage, which significantly enhances operational safety. By virtue of being constructed with high-quality materials and incorporating advanced technological elements, this pump offers a high degree of reliability.
TZA/E series chemical process pumps are designed and produced in accordance with API610 and VDMA24297 specifications. TZA pump body is supported by feet and TZE pump body is the central support. Single suction radial impeller, axial suction, radial discharge.
The China standard horizontal chemical process pump is designed for efficient and reliable chemical fluid handling. Built with corrosion-resistant materials and robust construction, it delivers stable performance under harsh operating conditions. Widely used in petrochemical, chemical, and industrial applications, it ensures durability, safety, and cost-effective operation.
The graphite chemical process centrifugal pump is designed for safely handling corrosive and abrasive chemicals. With graphite components, it offers excellent chemical resistance, reliable operation, and low maintenance, making it ideal for transferring acids, alkalis, and aggressive liquids in chemical processing applications.
