The TYC no-leakage double - shell magnetic submerged pump. It features a double - shell design for enhanced safety. Magnetic drive ensures no leakage. High - quality materials guarantee durability. Efficient operation meets various fluid transfer needs.
Item No :
TYCOrder(MOQ) :
1Color :
CustomizedPackage :
CustomizedMaterial :
SteelWorking Temp :
-20 to 350 ℃Working Pressure :
1.6 to 5 MPAutomatic No Leakage Submersible Magnetic Drive Pump
TYC no leakage magnetic drive submerged pump is a pump type of submerged structure designed for the applicable occasions where the medium is required to be completely closed to prevent leakage during transportation.The submerged part that contacts the liquid is all made of stainless steel., and the submerged depth ranges from 1 to 6 meters. The main part of the pump is all placed in the liquid,which adopts static seal design.There is no traditional mechanical seal,and the medium can be completely isolated from the external air to truly achieve no leakage.
Product Advantages
1. TYC leak-free magnetic drive submerged centrifugal pump, energy-saving and designed to national standards.
2. Flow components (pump body, rotor, cover, impeller, sleeve, shaft) available in 304, 316, 316L, 904, TA2, he276 and other materials.
3. CFD-based hydraulic design with precision casting ensures smooth flow, high cavitation resistance, strong corrosion and pressure resistance.
Product Application
It is extensively applied for conveying hazardous media such as volatile, flammable, explosive, toxic, and corrosive substances. Typical applications include petroleum refining, chemical production, coal processing, alkali manufacturing, metallurgy, rare earth extraction, pesticide and dye industries, pharmaceuticals, research facilities, and the defense sector.

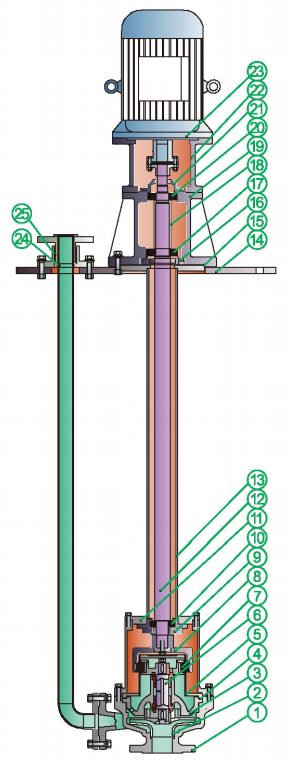

Material List
| Part | Material | Part | Material |
| ① Pump body | 304/316/316L | ⑭ Square plate | A3 |
| ② Impeller | 304/316/316L | ⑮ Sseal ring | Tetrafluoro |
| ③ Pump cover | 304/316/316L | ⑯ Bearing cover | HT200 |
| ④ Seal ring | Tetrafluoro | ⑰ Bearing | Rolling bearing |
| ⑤ Spacer sleeve | 304/316/316L | ⑱ Bearing retainer | 45# |
| ⑥ Minor axis | 304/316/316L | ⑲ Bearing housing | HT200 |
| ⑦ Inner rotor assembly | 304/316/316L/Permanent magnet | ⑳ Bearing | Rolling bearing |
| ⑧ Outer rotor assembly | 304/316/316L/Permanent magnet | ㉑ Bearing cover | HT200 |
| ⑨ Bearing cover | HT200 | ㉒ Bracket | HT200 |
| ⑩ Bearing | Rolling bearing | ㉓ Electric machinery | Per clients requested |
| ⑪ Bracket assembly | HT200/45# | ㉔ Outlet pipe | 304/316/316L/Pemanent magnet |
| ⑫ Principal axis | 2Cr13 | ㉕ Outlet flange | HT200 |
| ⑬ Executive director | 304/316/316L |

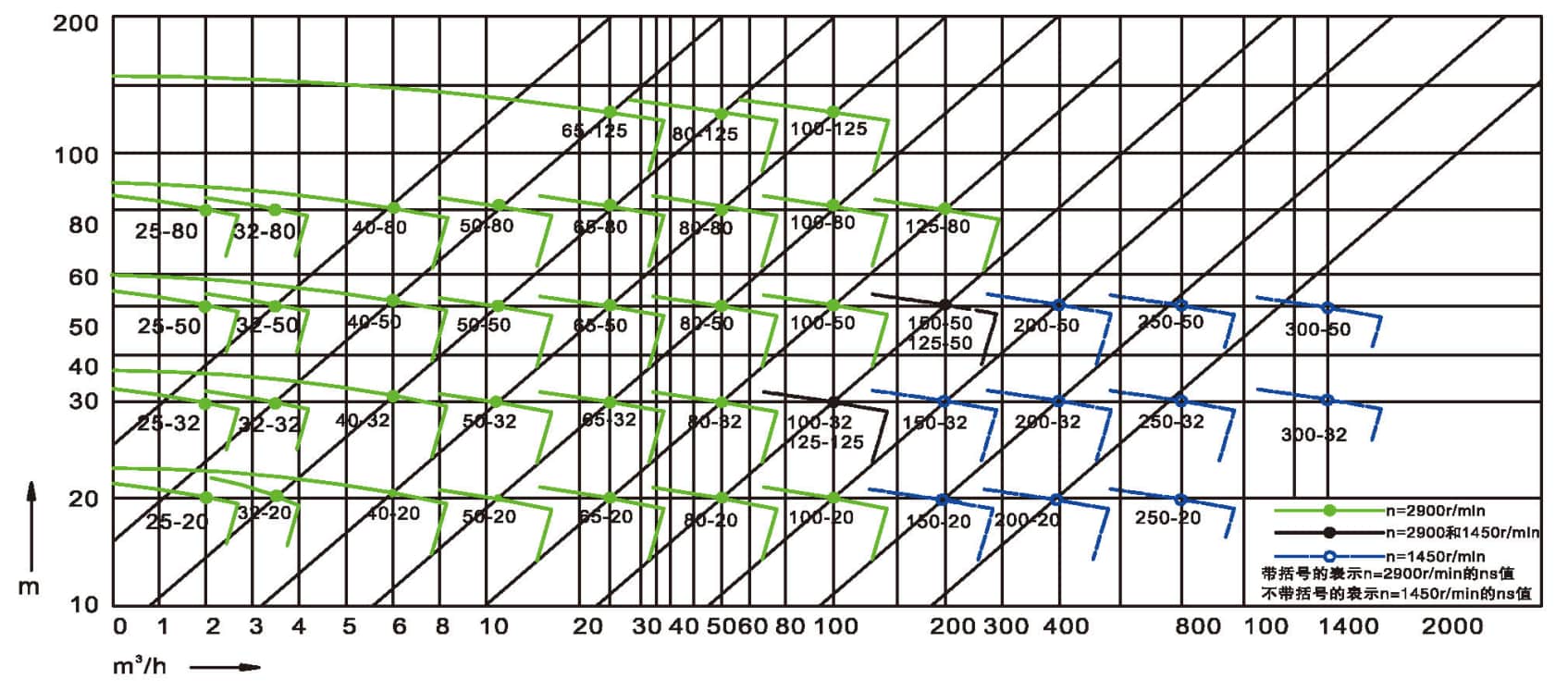

Performance Range
Performance Range:
design pressure:1.6~5 .0mpa;
Flow:1.8~400m/h;
Lift:15~125m;
Power:1 .5~280kw;
Applicable temperature:-20~350°C.
The noise-free premium stainless steel submerged pump features a compact design with high-efficiency motor and low vibration system for quiet operation. Built from corrosion-resistant stainless steel, it ensures consistent water flow and extended service life.
