The China standard horizontal chemical process pump is designed for efficient and reliable chemical fluid handling. Built with corrosion-resistant materials and robust construction, it delivers stable performance under harsh operating conditions. Widely used in petrochemical, chemical, and industrial applications, it ensures durability, safety, and cost-effective operation.
Item No :
TZCChina Standard Horizontal Chemical Process Pump
TZC horizontal chemical process pump is modified and designed by our company based on CZ pump according to the 8th edition of API610 standard of American Petroleum Industry Institute, so as to facilitate the renewal and transformation of the device. Its structural form is a single suction single-stage structure with horizontal suspension, radial part and rear door opening. It adopts extended coupling, which can disassemble and repair the pump without moving the motor and dismantling the pipeline.
Product Advantages
1.The pump cover is equipped with a water-cooled cavity design to eliminate the adverse effects on the mechanical seal and bearing when the temperature of the conveying medium is high. (according to API610 flushing scheme);
2.The mechanical seal can adopt single end face, double end face or metal bellows structure according to different working conditions, with reliable sealing performance. (according tAPI61mechanical seal layout);
Product Application
Product widely used in petroleum, chemical industry, acid making, alkali making, smelting ,rare earth, pesticide, dye, medicine, paper making, electroplating, electrolysis, pickling and other production processes to transport corrosive liquids.
Material List
| No. | Part | No. | Part | No. | Part |
| 102.00 | Pump body | 360.00 | Bearing gland | 644.00 | Oil slinger |
| 922.00 | Impeller nut | 320.00 | Rolling bearing | 320.01 | Anti friction bearing |
| 502.00 | Choma of pump body | 330.00 | Bearing bracket | 507.01 | Dust free ring |
| 230.00 | Impeller | 210.00 | Shaft | 521.00 | Seal shaft sleeve |
| 161.00 | Pump cover | 360.01 | Bearing gland | 471.00 | Seal gland |
| 433.00 | Sufing/seal | 320.01 | Anti friction bearing | 433.00 | Seal |
| 471.00 | Suffing(seal)gland | 932.00 | Snap ring | 915.00 | Snap ring |
| 524.00 | Shaf sleeve | 638.00 | Cup |

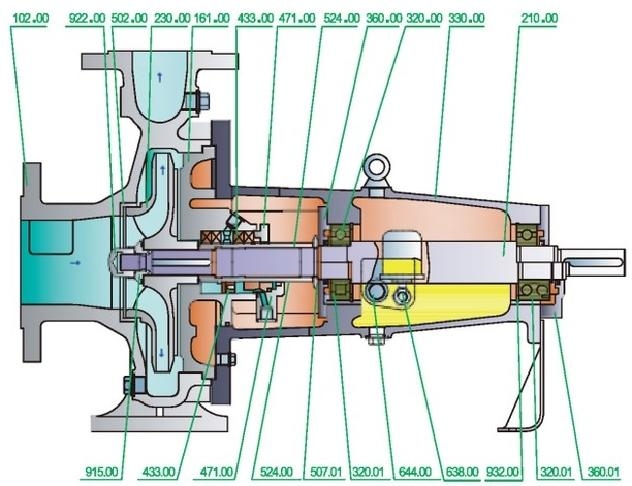

Structural Diagram
Performance range:
Design pressure: 2.5MPa,
Flow:5.5~1500m³h,
Lift:14~160m,
Power:2.2~1500kW
Applicable temperature:
-80℃~140℃ (ordinary type);
140℃~300℃ (with water cooling chamber).
The TCAF Series chemical process non-leakage fluorine magnetic pump utilizes a magnetic coupling for sealing, thereby achieving zero leakage. It is an ideal choice for chemical processes, as it ensures both safety and the stable transfer of fluids.
The TCA/E no-leakage petrochemical magnetic pump is specifically engineered for application in the petrochemical industry. Its most notable feature is the absence of leakage, which significantly enhances operational safety. By virtue of being constructed with high-quality materials and incorporating advanced technological elements, this pump offers a high degree of reliability.
TZA/E series chemical process pumps are designed and produced in accordance with API610 and VDMA24297 specifications. TZA pump body is supported by feet and TZE pump body is the central support. Single suction radial impeller, axial suction, radial discharge.
