The new round film absorbing machine where graphite holes fall. It uses graphite block with hole structure to effectively absorb gas to improve heat and mass transmission.
Item No :
KXGOrder(MOQ) :
1Payment :
Alipay PayPal westernunion T/T L/CProduct Origin :
ChinaColor :
CustomizedShipping Port :
shenzhen shanghai guangzhouLead Time :
please contact 504893184@qq.com or CP +8613696510409Package :
CustomizedMaterial :
GraphiteWorking Temp :
≤170℃Working Pressure :
Vertical≤0.1Mpa,Horizontal≤0.4MpaNew Round Block Hole Graphite Falling Film Absorber
A modified YKX graphite falling film absorber is represented by the structure. The structure of the absorption heat exchange element lacks a central through hole. It is a gas absorption device with exceptional performance and is distinguished by its small size and comparatively high material utilization rate.
Product Advantages
The new round block hole graphite falling film absorber offers excellent corrosion resistance, high thermal conductivity, efficient gas absorption capacity, improved durability and thermal transmission performance.

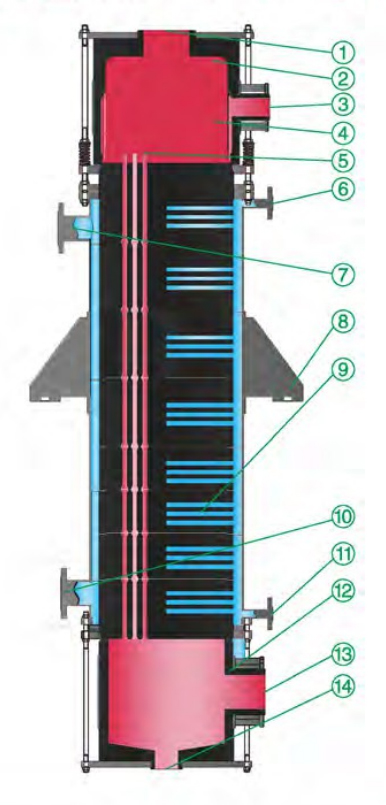

Structural Diagram
| Parts details | |
| 1 | Air inlet |
| 2 | Graphite gas-liquid mixing chamber |
| 3 | Liquid inlet |
| 4 | Graphite pressure stabilizing ring |
| 5 | Graphite distribution head |
| 6 | Vent |
| 7 | Cooling water outlet |
| 8 | Equipment support |
| 9 | Graphite heat exchange block |
| 10 | Cooling water inlet |
| 11 | Drain port |
| 12 | Gas liquid separation chamber |
| 13 | Tail gas outlet |
| 14 | Acid outlet |

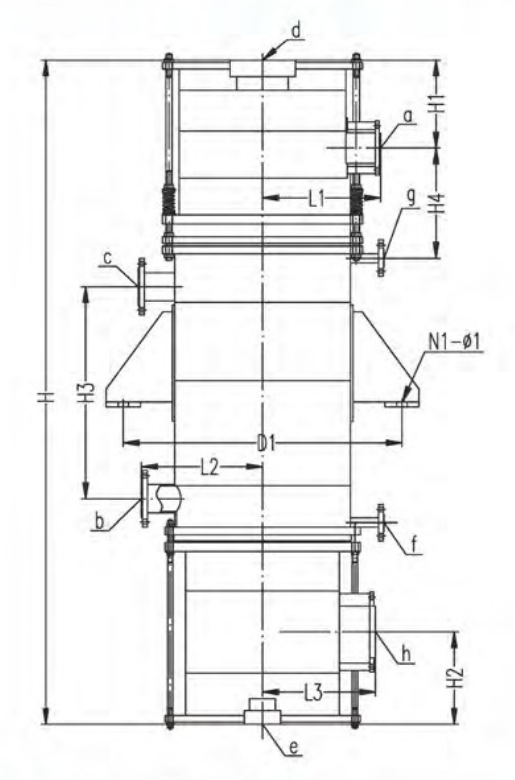

Nozzle Parameter Table
| Model | a. e Tube | b. c Tube DN |
f. g Tube DN |
d Tube | h Tube | |||
| D1 | D2 | D3 | D4 | D5 | D6 | |||
| KXG40 | 65 | 160 | 50 | 20 | 150 | 295 | 75 | 180 |
| KXG50 | 75 | 180 | 65 | 20 | 200 | 350 | 100 | 210 |
| KXG60 | 100 | 210 | 80 | 20 | 250 | 400 | 125 | 240 |
| KXG70 | 100 | 210 | 100 | 25 | 250 | 400 | 200 | 350 |
| KXG80 | 125 | 240 | 100 | 25 | 300 | 460 | 250 | 400 |
| KXG90 | 125 | 240 | 150 | 25 | 300 | 460 | 250 | 400 |
The new round film absorbing machine where graphite holes fall. It uses graphite block with hole structure to effectively absorb gas to improve heat and mass transmission.
