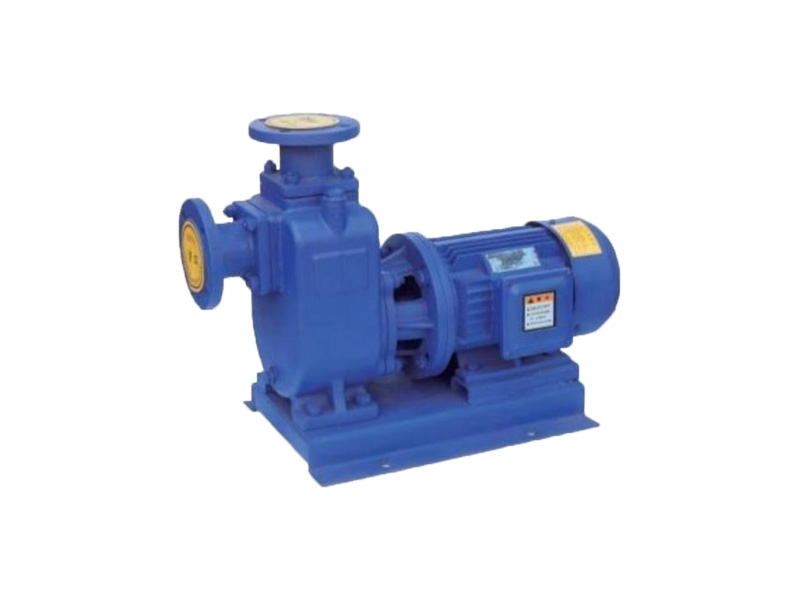

The Industrial Self Priming Centrifugal Pump efficiently transfers various liquids without manual priming. Ideal for industrial applications, it offers high performance, reliability, and easy maintenance, ensuring continuous and smooth operation.
Item No :
ZXOrder(MOQ) :
1Payment :
L/C T/T Alipay westernunion PayPalProduct Origin :
ChinaColor :
CustomizedShipping Port :
shanghai shenzhen guangzhouLead Time :
please contact 504893184@qq.com or CP +8613696510409Package :
CustomizedMaterial :
Stainless SteelEnergy Saving Self Priming Centrifugal Pump
The ZX series self-priming pumps produced by our company are energy-efficient pump products developed by absorbing, digesting, and improving upon relevant domestic and international technical data. As a self-priming centrifugal pump, it offers a compact structure, easy operation, stable performance, simple maintenance, high efficiency, long service life, and strong self-priming capability. No bottom valve is required in the pipeline, and it only needs a certain amount of liquid stored in the pump body before operation. This not only simplifies the pipeline system but also improves working conditions.
Main Applications
1. It is suitable for various applications including urban environmental protection, construction, fire control, chemical industry, pharmaceutical manufacturing, dyeing, printing, brewing, power generation, electroplating, papermaking, industrial and mining rinsing, and equipment cooling.
2. When equipped with a swing-arm sprinkler, it can spray water into the air, dispersing it into fine droplets, making it an ideal tool for farms, nurseries, orchards, and tea plantations.
3. It is compatible with clean water, seawater, chemical liquids with certain acidity or alkalinity, and general slurry-like fluids (with a viscosity ≤100 cP and solid content ≤30%).
4. It can be paired with filter presses of any model and specification, making it an ideal pump for supplying slurry to filter presses for filtration processes.

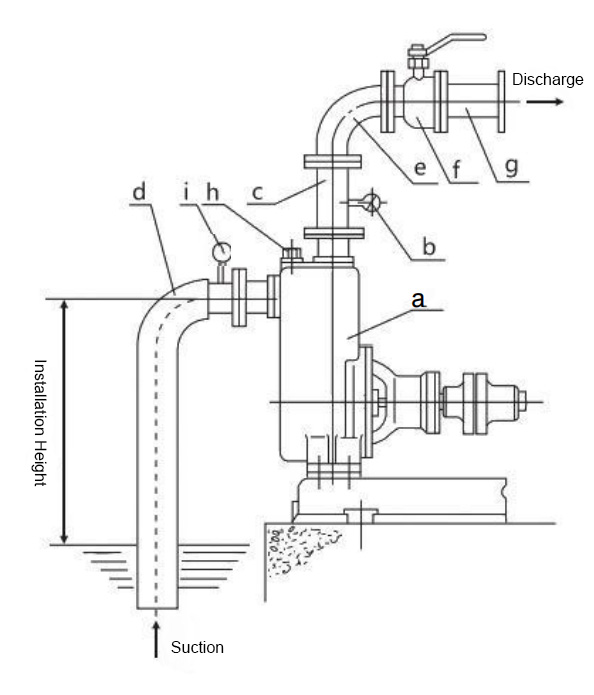

Structural Diagram
| a. Pump | d. Suction pipe | g. Outlet pipe |
| b. Pressure gauge | e. Elbow | h. Liquid filling bolt |
| c. Outlet pipe | f. Flow control valve | i. Vacuum gauge |

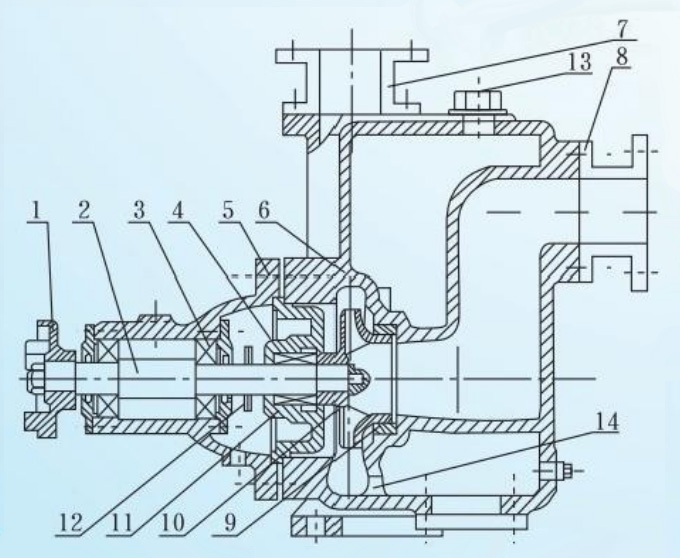

| 1. Coupling | 8. Inlet flange |
| 2. Pump shaft | 9. Front seal ring |
| 3. Bearing | 10. Impeller |
| 4. Mechanical seal | 11. Rear cover |
| 5. Bearing housing | 12. Water deflector ring |
| 6. Pump casing | 13. Liquid filling hole |
| 7. Outlet flange | 14. Return hole |
