For industrial applications, the DBY New Type Electric Diaphragm Pump provides effective, leak-free fluid transmission with a robust design, low energy consumption, and silent operation.
Item No :
DBYOrder(MOQ) :
1Color :
CustomizedPackage :
CustomizedMaterial :
Stainless steel/Cast iron/Fluorine-lined/PPNew Type Electric Diaphragm Pump
One new kind of pump is the electric diaphragm pump. A growing number of developed nations have used this kind of pump in place of some centrifugal pumps and screw pumps in sectors including petrochemicals, ceramics, and metallurgy in recent years as a result of revolutionary developments in diaphragm materials.
Product Advantages
There are now two versions of diaphragm pumps produced by our factory: the DBY electric-driven type and the YGB hydraulic-driven type. The Ministry of Coal Industry has certified the product designs, which are based on reference samples from the American company ABEL. When the outlet pressure is less than 3 kgf/cm², the DBY-type diaphragm pump is appropriate for low-pressure applications. Applications with an outlet pressure of at least 4 kgf/cm² are appropriate for the YGB-type. The DBY-type diaphragm pump is the subject of this handbook.
Product Application
1.Various poisonous, flammable, and volatile liquids.
2. A variety of strongly corrosive liquids, alkalis, and acids.
3. Able to transport media at temperatures as high as 150°C.
4. Delivers pressure to several types of filter presses.
5. Recovery and circulation of hot water.
6. Oil loading and unloading, oil depots, and oil ships.
7. Pumping chocolate, mashed potatoes, jam, pickles, etc.
8. Pumping adhesives, paint, gum, and pigments.
9. Slurry, mortar, cement grout, and various ceramic glazes.
10. Fillers, latex, organic solvents, and other rubber solutions.
11. Pumping away bilge water and leftover oil from ship tanks for barges and oil tankers.
12. Hops and fermenting syrup, molasses, and powder slurry.
13. Pumping sediments and waste from sewers, tunnels, and mines.
14. Managing and distributing different special media.
Performance Specification
| Type | Flow (m³/h) | Suction Lift (m) | Head (m) | Outlet Pressure (kgf/c㎡) | Motor Speed/Power (r/min/kW) | Pump Inlet/Outlet Size |
| DBY-10 | 0.5 | 3 | 30 | 3 | 1450/0.55 | 1/2" thread |
| DBY-15 | 0.75 | 3 | 30 | 3 | 1450/0.55 | 1/2" thread |
| DBY-25 | 3.5 | 4 | 30 | 3 | 1450/1.5 | 1" thread/25mm flange |

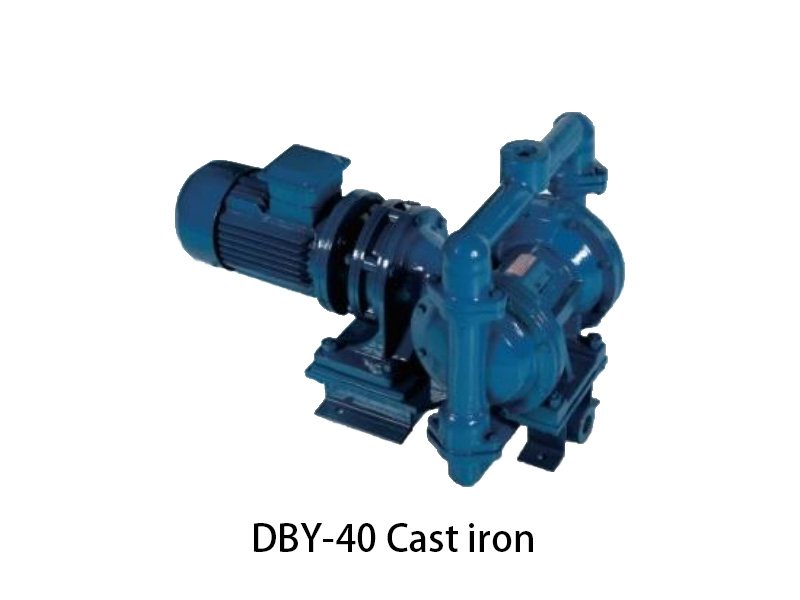

| DBY-40 | 4.5 | 4 | 30 | 3 | 1450/1.5 | 1" thread/40mm flange |

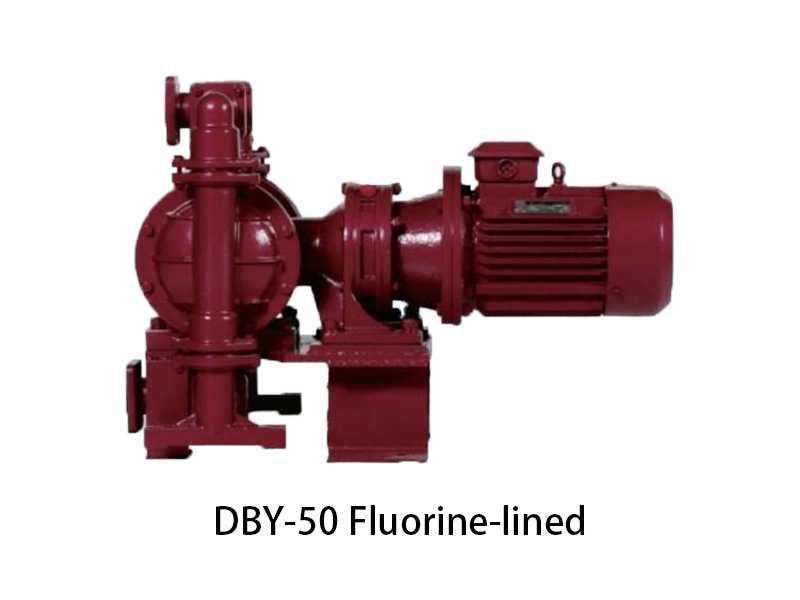

| DBY-50 | 6.5 | 4.5 | 30 | 3 | 1450/2.2 | 50mm flange |
| DBY-65 | 8 | 4.5 | 30 | 3 | 1450/2.2 | 65mm flange |
| DBY-80 | 16 | 5 | 30 | 3 | 1450/4 | 80mm flange |
| DBY-100 | 20 | 5 | 30 | 3 | 1450/4 | 100mm flange |
