Heavy solids are easily handled by a sturdy dual-pipe construction. Reliable wastewater drainage in challenging conditions is guaranteed by fully submersible, corrosion-resistant construction.
Item No :
YWOrder(MOQ) :
1Payment :
Alipay westernunion T/T L/CProduct Origin :
ChinaColor :
CustomizedShipping Port :
shanghai shenzhen guangzhouLead Time :
please contact 504893184@qq.com or CP +8613696510409Package :
CustomizedMaterial :
Cast iron/Stainless steelWorking Temp :

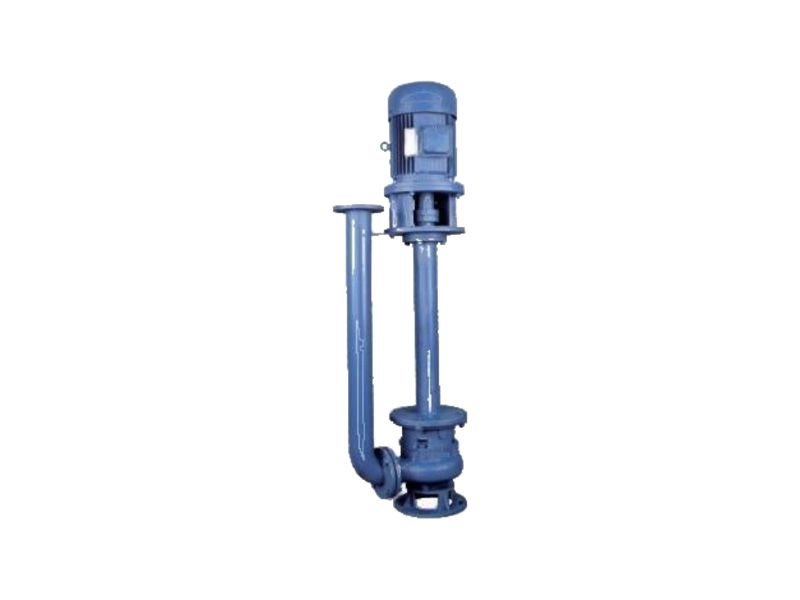

≤60 ℃Non-Clogging Dual-Pipe Submersible Sewage Pump
The YW-type clog-free submersible sewage pump incorporates cutting-edge technology to effectively manage long-fiber waste and solid particles. High flow capacity and energy efficiency are guaranteed by its special single/double-channel impeller and improved volute design. The pump has strong mechanical seals, anti-clogging capabilities, and vibration-free operation because to balanced impellers. It has undergone extensive testing to satisfy industry standards, provides dependable performance, and is well-known in the market for its robustness and effectiveness in wastewater applications.
Product Advantages
Large flow channels and a sophisticated anti-clogging design allow the YW-type submersible sewage pump to effectively handle solid particles up to 50% of its diameter and fibers up to five times its diameter. High efficiency and substantial energy savings are guaranteed by its well-matched motor and improved hydraulic architecture. The pump's robust dual-series mechanical seals made of tungsten carbide allow for dependable continuous operation for more than 8,000 hours. This pump provides excellent performance and quick maintenance because to its lightweight design, small size, and simple installation characteristics.
Structural Description
1. Specific gravity: 1.0~1.3 kg/dm³, PH range: 5~9, and medium temperature ≤60°C.
2. Operating Conditions: To avoid motor overload, the pump must run within the designated head range. When placing an order, please specify whether you want manufacturer customization for full-range head operation.
3. Electrical Parameters: The motor current cannot be higher than its rated current when in operation.
4. Customization Note: To expedite manufacturer production, please indicate specific medium specifications when placing an order for particular temperature/media needs.
| 1 | Motor |
| 2 | Coupling |
| 3 | Motor Mount |
| 4 | Upper Bearing |
| 5 | Upper Bearing Housing |
| 6 | Mounting Flange |
| 7 | Extension Shaft |
| 8 | Support Tube |
| 9 | Lower Bearing |
| 10 | Upper Mechanical Seal |
| 11 | Oil Chamber |
| 12 | Mechanical Seal |
| 13 | Rear Cover Plate |
| 14 | Key |
| 15 | Impeller Nut |
| 16 | Impeller |
| 17 | Seal Ring |
| 18 | Pump Casing |
| 19 | Discharge Pipe |
| 20 | Base Plate |
Heavy solids are easily handled by a sturdy dual-pipe construction. Reliable wastewater drainage in challenging conditions is guaranteed by fully submersible, corrosion-resistant construction.
Robust, effective pump made for draining heavy-duty sewage. uses anti-clogging technology to handle solids with ease. Perfect for construction, municipal, and industrial uses. dependable and low-maintenance.
