Robust, effective pump made for draining heavy-duty sewage. uses anti-clogging technology to handle solids with ease. Perfect for construction, municipal, and industrial uses. dependable and low-maintenance.
Item No :
YWOrder(MOQ) :
1Payment :
Alipay PayPal westernunion L/C T/TProduct Origin :
ChinaColor :
CustomizedShipping Port :
shanghai shenzhen guangzhouLead Time :
please contact 504893184@qq.com or CP +8613696510409Package :
CustomizedMaterial :
Cast iron/Stainless steelWorking Temp :
≤60 ℃Non-Clogging Single-Pipe Submersible Sewage Pump
The YW Non-Clogging Single-Pipe Submersible Sewage Pump is made to drain sludge and wastewater effectively. Solids and fibrous materials are easily handled by its sophisticated anti-clogging impeller. It guarantees dependable functioning in challenging conditions because it is made of corrosion-resistant materials and sturdy cast iron. This pump's high flow rates, energy economy, and ease of maintenance make it perfect for municipal, industrial, and agricultural applications. It is small, submersible, and vibration-free. Ideal for wastewater treatment facilities, stormwater drainage, and sewage systems. For long-lasting, effective pumping solutions, rely on YW.
Product Advantages
YW non clogging single tube submersible sewage pump can be equipped with an automatic liquid level control panel, which can start/stop operation according to liquid level changes - without manual supervision. Its vertical design allows for easy soaking (0.5-7 meters) and safe operation. The front axle connection ensures smooth operation and overload protection protects the engine. Support the use of circular or square mounting plates to install single/double pipes.

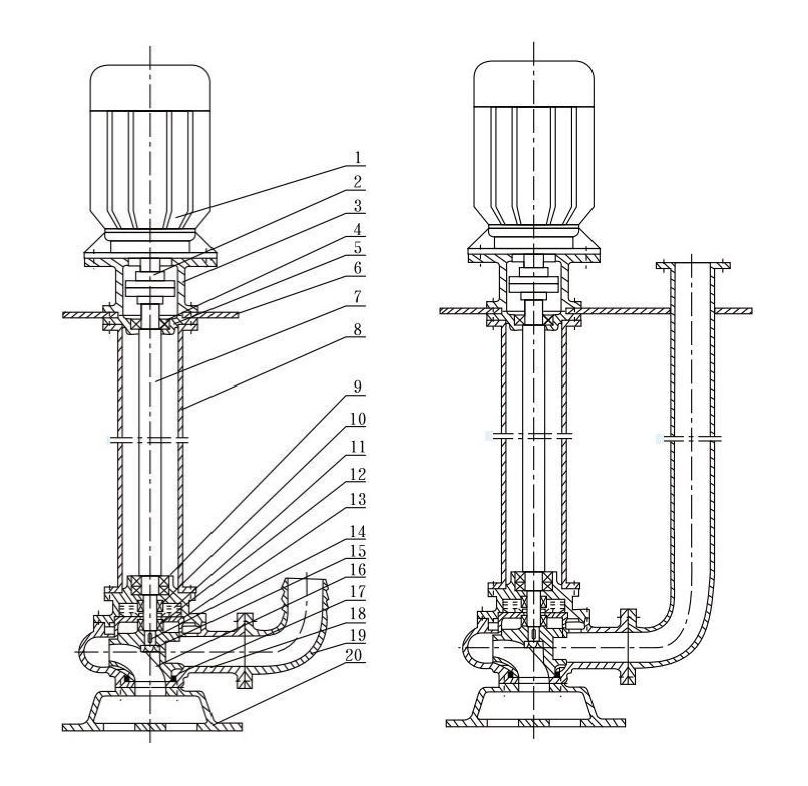

Structural Description
| 1 | Motor |
| 2 | Coupling |
| 3 | Motor Mount |
| 4 | Upper Bearing |
| 5 | Upper Bearing Housing |
| 6 | Mounting Flange |
| 7 | Extension Shaft |
| 8 | Support Tube |
| 9 | Lower Bearing |
| 10 | Upper Mechanical Seal |
| 11 | Oil Chamber |
| 12 | Mechanical Seal |
| 13 | Rear Cover Plate |
| 14 | Key |
| 15 | Impeller Nut |
| 16 | Impeller |
| 17 | Seal Ring |
| 18 | Pump Casing |
| 19 | Discharge Pipe |
| 20 | Base Plate |
Heavy solids are easily handled by a sturdy dual-pipe construction. Reliable wastewater drainage in challenging conditions is guaranteed by fully submersible, corrosion-resistant construction.
