High-efficiency fluid transfer is ensured by the GDL vertical multistage pipeline pump, which is perfect for increasing pressure in water supply and industrial systems.
Item No :
GDLOrder(MOQ) :
1Payment :
Alipay PayPal westernunion L/C T/TProduct Origin :
ChinaColor :
CustomizedShipping Port :
shanghai shenzhen guangzhouLead Time :
please contact 504893184@qq.com or CP +8613696510409Package :
CustomizedMaterial :
Stainless SteelWorking Temp :
≤100℃Working Pressure :
≤1.6MPaVertical Multistage Pipeline Pump
For high-pressure fluid transmission in pipes, the GDL Vertical Multistage Pipeline Pump is an efficient, compact pump. It is perfect for boiler feed systems, industrial circulation, and water supply because of its multistage impeller design, which guarantees steady performance. Small, robust, and low-maintenance.
Product Advantages
The newest generation of pump has a small footprint, reliable performance, ease of installation, and energy efficiency. The shaft seal uses wear-resistant mechanical sealing for minimal leakage and a longer service life, while the casing is composed of premium 1Cr18Ni9Ti stainless steel. Axial force is addressed by hydraulic balance, which guarantees silent and seamless operation. It can be easily integrated into any horizontal pipeline section since its installation circumstances are better than those of DL-type pumps. It completely satisfies the firefighting, drainage, and water supply requirements of deep mines, high-rise structures, and related applications. This pump is the best option for a variety of sectors since it is perfect for moving hot or cold water or general media with chemical and physical characteristics comparable to water. T ≤ 100°C and PN ≤ 1.6 MPa (16 kg/cm²) are the operating temperatures and pressures.

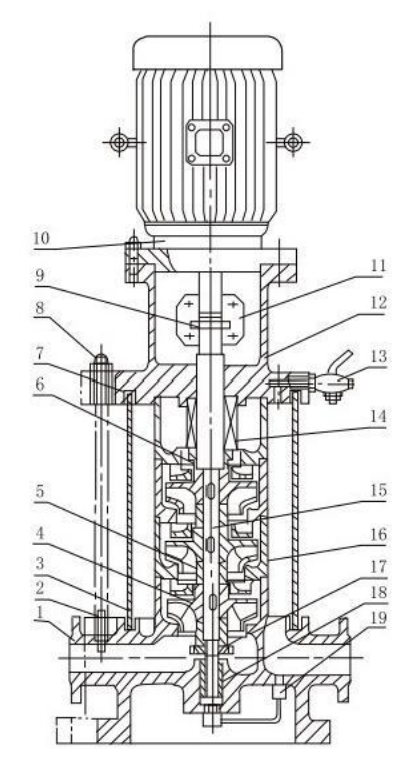

Structural Diagram
| No | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 |
| Component | Pump Body | Tension Bolt | Outer Cylinder | Impeller | Impeller Bushing | Shaft Sleeve | Gasket | Nut | Pin | Motor | Coupling | Connection Seat | Nozzle | Mechanical Seal | Shaft | Middle Section | Shaft Sleeve Nut | Bearing | Return Pipe Assembly |
