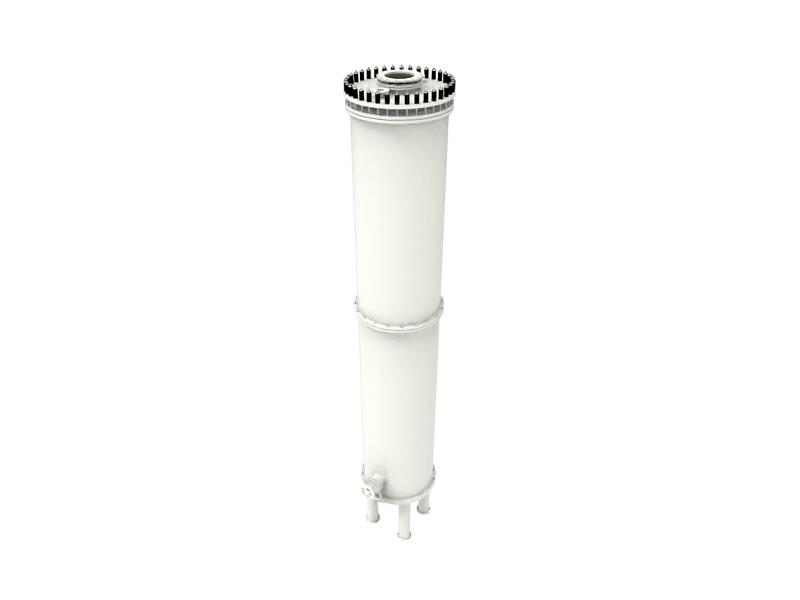

Water-jacketed Graphite Hydrogen Chloride Synthesis Furnace

Water-jacketed Graphite Hydrogen Chloride Synthesis Furnace

It is made up of a steel shell, a graphite furnace cover, a synthetic cylinder, and a furnace bottom. It has several advantages over a steel shell furnace, including:

1. a long service life (usually more than ten years);

2. high product acid purity;

3. favorable working conditions with easy control and management.

The water-jacketed graphite hydrogen chloride synthesis furnace features exceptional corrosion resistance, efficient heat transfer, stable temperature control, and long-term durability. Its robust structure ensures reliable performance in harsh chemical environments, delivering safe, consistent, and efficient HCl production with minimal maintenance requirements.

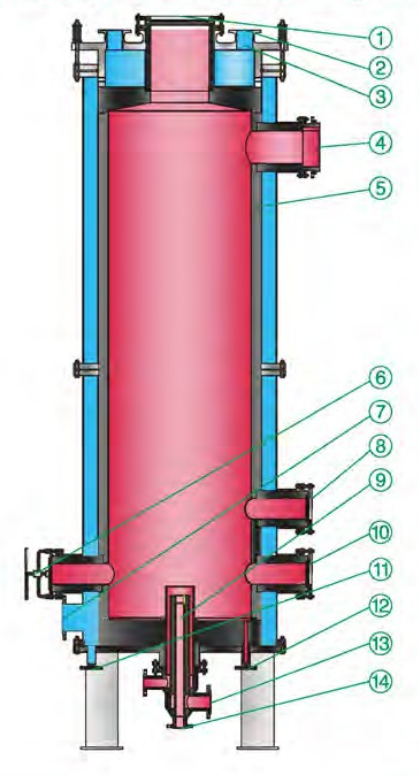

Parts details
1	Explosion proof port
2	Cooling water outlet
3	Cooling outlet
4	HCl outlet
5	Graphite synthetic cylinder
6	Furnace door
7	Cooling water inlet
8	Mirror
9	Three sets of quartz glass burner
10	Mirror
11	Drain port
12	Acid outlet
13	Chlorine inlet
14	Hydrogen inlet

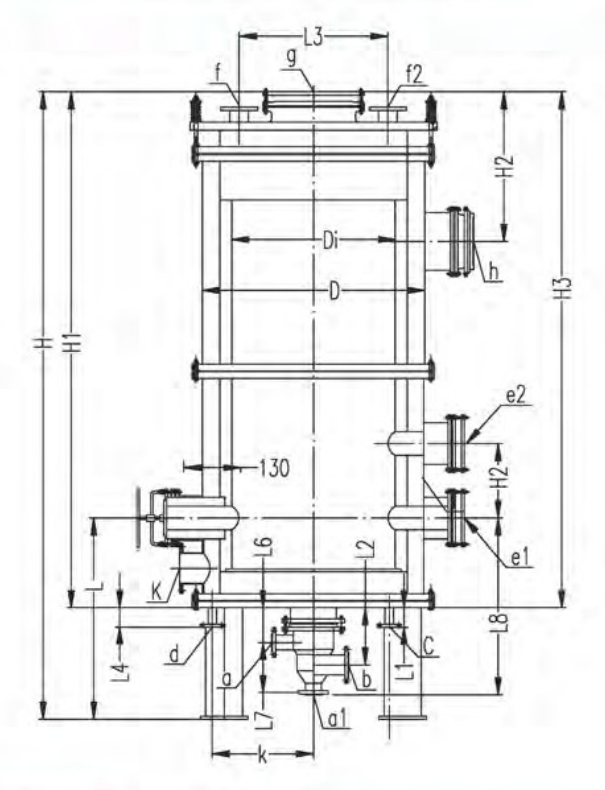

Nozzle Parameter Table

Symbol	a	b	c	d	e	f	g	h	k
Specifications	DN/D1	DN/D1	DN	DN	DN	DN	DN	DN/D1	DN
SSL-300	40/125	40/125	20	50	125	80	250	75/180	40
SSL-400	55/145	55/145	20	50	125	100	250	100/210	50
SSL-500	70/180	70/180	20	50	125	125	250	125/240	65
SSL-600	84/210	84/210	20	50	125	150	400	150/295	80
SSL-700	100/210	100/210	20	50	125	200	400	200/350	100
SSL-800	115/240	115/240	20	50	125	200	400	200/350	100
SSL-900	115/240	115/240	20	50	125	200	400	250/400	125
SSL-1000	115/240	115/240	20	50	125	200	400	250/400	150
Nozzle connection standard	HG 20593	HG 20593	-	HG 20593	-	HG 20593	-	-	HG 20593
Pressure level MPa	1.0	1.0	-	1.0	-	1.0	-	1.0	1.0
Nozzle usage	Hydrogen inlet	Hydrogen inlet	Acid outlet	Exhaust port	Mirror port	Water outet	Explosion proof port	Hydrogenated hydrogen outlet	Cooling water inlet
