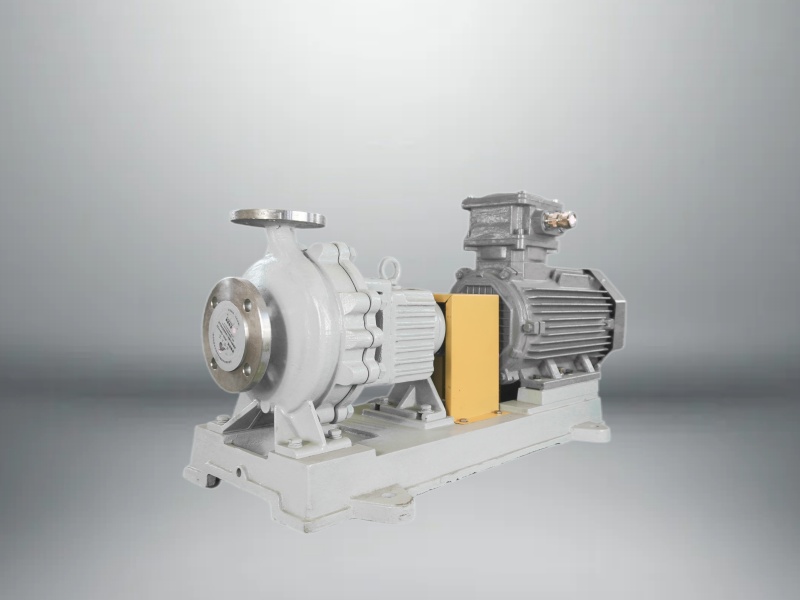

Anti-corrosion chemical process centrifugal pump is a type of pump used in the chemical industry for transferring, discharging, feeding, and lubricating various chemicals. It operates on the principle of centrifugal force, where the rotation of the impeller throws the liquid outward, creating a pressure difference that allows the liquid to flow from the inlet to the outlet.
Item No :
THJColor :
CustomizedPackage :
CustomizedMaterial :
Steel/SICWorking Temp :
-20 to 200℃/The temperature of the transportable medium is 300 ℃Working Pressure :
1.6 MPaAnti-Corrosion Chemical Process Centrifugal Pump
THJ chemical process centrifugal (alkali) pump is a single-stage single suction cantilever centrifugal pump, which is upgraded and innovated on the basis of the pump. It is a new standard chemical process pump instead of IH and TI. The pump is a single-stage single suction cantilever structure. In its design, it adopts advanced hydraulic model, has high efficiency, and is an energy-saving product, which is 5% higher than IH pump.
Product Advantages
1.The flow passage parts such as pump body, pump cover and impeller are made of high-quality stainless steel, which is precision cast by a new process, without impurities, pores and trachoma. High quality alloy wear-resistant materials such as 2205 duplex stainless steel can be selected;
2.The shaft seal is a self-developed 179 series static corrosion- resistant and wear-resistant mechanical seal, which can select single end face and double end face machinery, container type, packing dynamic seal, and the sealing surface materials for grinding can be cemented carbide, silicon carbide and other materials;
3.Corrosion resistant and wear-resistant design, which can transport liquid with slurry, crystal, suspended solids particles less than 3mm and solid content less than 10%.
Product Application
Anti-corrosion chemical process centrifugal pump is widely used in petroleum,chemical industry, alkali making, smelting, rare earth, pesticide, dye, medicine, papermaking, electroplating, electrolysis, radio and other production processes to transport corrosive liquids.
Material List
| Part | Material | Part | Material | Part | Material |
| ①Pump casing | 304/316/316L | ⑧Pump shaft | 2Cr13/3Cr13 | ⑮ Pump coupling | 45# |
| ②Impeller | 304/316/316L | ⑨Bracket | HT200 | ⑯ Diaphragm | 304 |
| ③Static ring | SIC/hard alloy | ⑩Bearing front cover | HT200 | ⑰ Elctric couping | 45# |
| ④Pump cover | 304/316/316L | ⑪ Front bearing | Gcr15 | ⑱ Shield | Hot rolled plate/Aluminum |
| ⑤Gasket | PTFE | ⑫ bearing box | HT200 | ⑲ Motor | As clients requested |
| ⑥Rotating ring | SIC/hard alloy | ⑬ Rear bearing | Gcr15 | ⑳ Plate | HT200 |
| ⑦Gland | 304/316/316L | ⑭ Rear gland of bearing | HT200 |
Structural Diagram

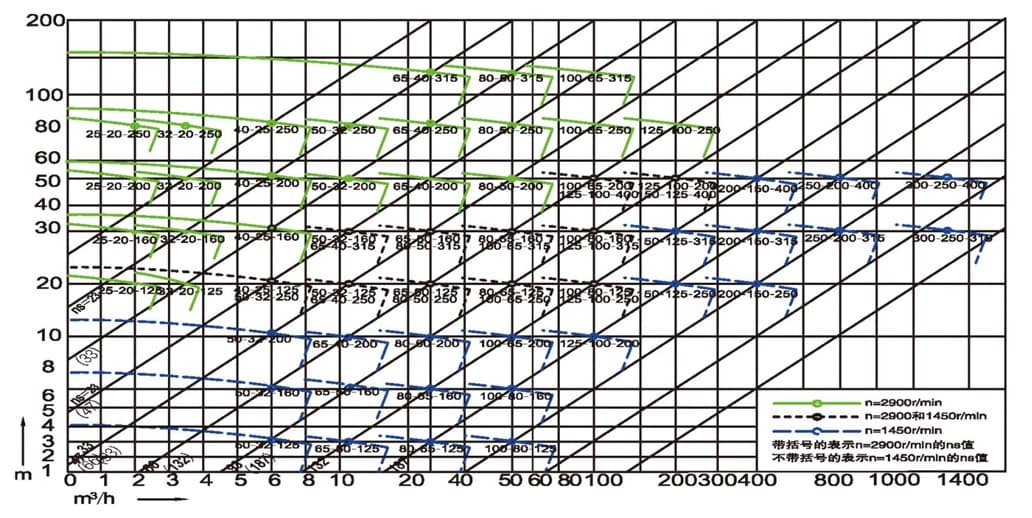

Performance Data
| Type | Rated power | Rated flow | Rated head | Voltage | Pump casing material | Suction |
| 25-20-125 | 1.1 | 2.5 | 20 | 380V | 304/316L | 25-20 |
| 25-20-160 | 2.2 | 2.5 | 32 | 380V | 304/316L | 25-20 |
| 25-20-200 | 4 | 2.5 | 50 | 380V | 304/316L | 25-20 |
| 25-20-250 | 1.5 | 2.5 | 80 | 380V | 304/316L | 32-20 |
| 32-20-125 | 1.5 | 3.2 | 20 | 380V | 304/316L | 32-20 |
| 32-20-160 | 2.2 | 3.2 | 32 | 380V | 304/316L | 32-20 |
| 32-20-200 | 4 | 3.2 | 50 | 380V | 304/316L | 32-20 |
| 32-20-250 | 7.5 | 3.2 | 80 | 380V | 304/316L | 32-20 |
| 40-25-125 | 1.5 | 6.3 | 20 | 380V | 304/316L | 40-25 |
| 40-25-160 | 3 | 6.3 | 32 | 380V | 304/316L | 40-25 |
| 40-25-200 | 5.5 | 6.3 | 50 | 380V | 304/316L | 40-25 |
| 40-25-250 | 11 | 6.3 | 80 | 380V | 304/316L | 40-25 |
| 50-32-125 | 2.2 | 12.5 | 20 | 380V | 304/316L | 50-32 |
| 50-32-160 | 4 | 12.5 | 32 | 380V | 304/316L | 50-32 |
| 50-32-200 | 7.5 | 12.5 | 50 | 380V | 304/316L | 50-32 |
| 50-32-250 | 11 | 12.5 | 80 | 380V | 304/316L | 50-32 |
| 65-50-125 | 3 | 25 | 20 | 380V | 304/316L | 65-50 |
| 65-50-160 | 5.5 | 25 | 32 | 380V | 304/316L | 65-50 |
| 65-40-200 | 11 | 25 | 50 | 380V | 304/316L | 65-40 |
| 65-40-250 | 18.5 | 25 | 80 | 380V | 304/316L | 65-40 |
| 65-40-315 | 30 | 25 | 125 | 380V | 304/316L | 65-40 |
| 80-65-125 | 5.5 | 50 | 20 | 380V | 304/316L | 80-65 |
| 80-65-160 | 11 | 50 | 32 | 380V | 304/316L | 80-65 |
| 80-50-200 | 15 | 50 | 50 | 380V | 304/316L | 80-50 |
| 80-50-250 | 30 | 50 | 80 | 380V | 304/316L | 80-50 |
| 80-50-315 | 45 | 50 | 125 | 380V | 304/316L | 80-50 |
| 100-80-125 | 11 | 100 | 20 | 380V | 304/316L | 100-80 |
| 100-80-160 | 18.5 | 100 | 32 | 380V | 304/316L | 100-80 |
| 100-65-200 | 30 | 100 | 50 | 380V | 304/316L | 100-65 |
| 100-65-250 | 45 | 100 | 80 | 380V | 304/316L | 100-65 |
| 100-65-315 | 75 | 100 | 125 | 380V | 304/316L | 100-65 |
| 125-80-160 | 30 | 160 | 32 | 380V | 304/316L | 125-80 |
| 125-100-200 | 55 | 200 | 50 | 380V | 304/316L | 125-100 |
| 125-100-250 | 75 | 200 | 80 | 380V | 304/316L | 125-100 |
| 125-100-315 | 22 | 200 | 125 | 380V | 304/316L | 125-100 |
| 125-100-400 | 30 | 200 | 50 | 380V | 304/316L | 125-100 |
| 150-125-250 | 18.5 | 200 | 20 | 380V | 304/316L | 150-125 |
| 150-125-315 | 30 | 200 | 32 | 380V | 304/316L | 150-125 |
| 150-125-400 | 45 | 200 | 50 | 380V | 304/316L | 150-125 |
| 200-150-250 | 37 | 400 | 20 | 380V | 304/316L | 200-150 |
| 200-150-315 | 45 | 400 | 32 | 380V | 304/316L | 200-150 |
| 200-150-400 | 75 | 400 | 50 | 380V | 304/316L | 200-150 |
| 250-200-250 | 55 | 800 | 50 | 380V | 304/316L | 250-200 |
| 250-200-315 | 110 | 800 | 80 | 380V | 304/316L | 250-200 |
| 250-200-400 | 160 | 800 | 50 | 380V | 304/316L | 250-200 |
| 300-250-315 | 160 | 1400 | 32 | 380V | 304/316L | 300-250 |
| 300-250-400 | 200 | 1400 | 50 | 380V | 304/316L | 300-250 |
Performance Range
Design pressure: 1.6MPa, Flow: 0.75 ~ 1550m³/h, Lift: 3 ~ 125m, Power: 1.1 ~ 400KW
Applicable temperature: -20~200℃; Double face seal cooling device, the temperature of the medium that can be transported is 300℃.
Anti-corrosion chemical process centrifugal pump is a type of pump used in the chemical industry for transferring, discharging, feeding, and lubricating various chemicals. It operates on the principle of centrifugal force, where the rotation of the impeller throws the liquid outward, creating a pressure difference that allows the liquid to flow from the inlet to the outlet.
THF fluoroplastic fluorine lined chemical centrifugal pump is a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Full plastic anti-corrosion abrasion resistance electric centrifugal pump —— it uses high - quality plastics for parts like the impeller and shell. This pump has excellent wear resistance, able to handle media with solid particles. It shows great corrosion - resistance to various chemicals. With a well - designed impeller, it operates efficiently with low noise and vibration, suitable for multiple industries.
ISG single suction vertical inline centrifugal pump is a compact, energy-efficient single-stage pump designed for HVAC, water supply, and industrial systems, offering quiet operation, easy installation, and reliable performance.
ISW single stage horizontal end suction centrifugal pump is a single-stage, single-suction design for efficient fluid transfer in pipelines, HVAC, and water supply systems.
S & SH-type single stage double suction centrifugal pump feature high efficiency, balanced axial thrust, and robust construction for large-flow industrial and municipal applications.
The wear-resistant and corrosion resistant slurry pump is engineered for transporting abrasive and corrosive slurries in mining, metallurgy, and chemical industries. With durable materials and robust construction, it ensures long service life, stable performance, and reduced maintenance.
