S & SH-type single stage double suction centrifugal pump feature high efficiency, balanced axial thrust, and robust construction for large-flow industrial and municipal applications.
Item No :
S & SHOrder(MOQ) :
1Color :
CustomziedPackage :
CustomziedMaterial :
Cast iron/Stainless steelWorking Temp :
<80°CSingle Stage Double Suction Centrifugal Pump

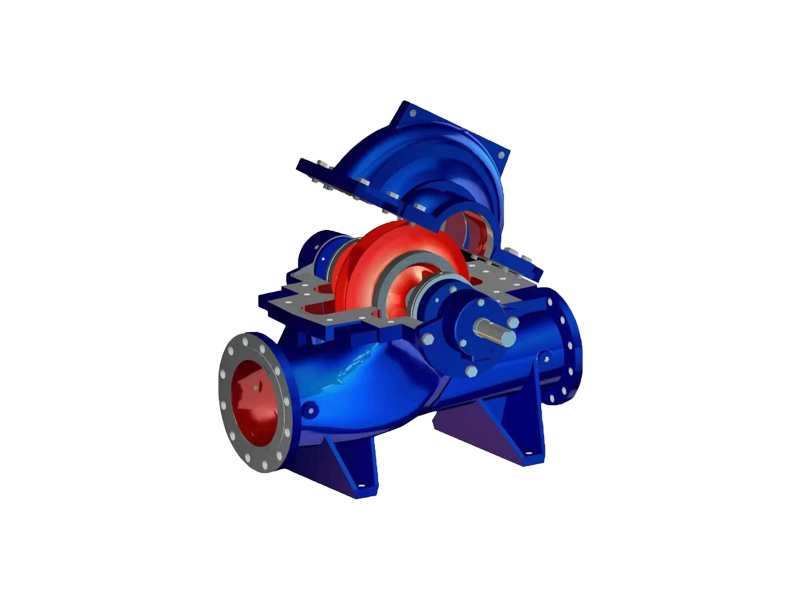

S & SH-type single stage double suction centrifugal pump is a single-stage, double-suction, split-case centrifugal pump, designed for conveying clean water and liquids with physical and chemical properties similar to water. Its head range is 9–140 meters, with a flow capacity between 126 and 12,500 cubic meters per hour. The maximum liquid temperature must not exceed 80°C.
Structural Description
The suction and discharge ports of S and SH pumps are located below the pump shaft, arranged horizontally and perpendicular to the axis. The pump cover is secured to the pump body with double-ended bolts and conical set screws, allowing easy inspection of internal components. Maintenance can be performed without removing the pipelines or motor. Viewed from the drive end, SH pumps rotate counterclockwise, while S pumps rotate clockwise.
Product Features
Product Application
Single stage double suction centrifugal pump is suitable for factories, mines, urban water supply, power stations, large-scale water conservancy projects, farmland irrigation, drainage and waterlogging control, etc. The 48SH—22 large-scale pump can also be used as a thermal power plant circulating pump.

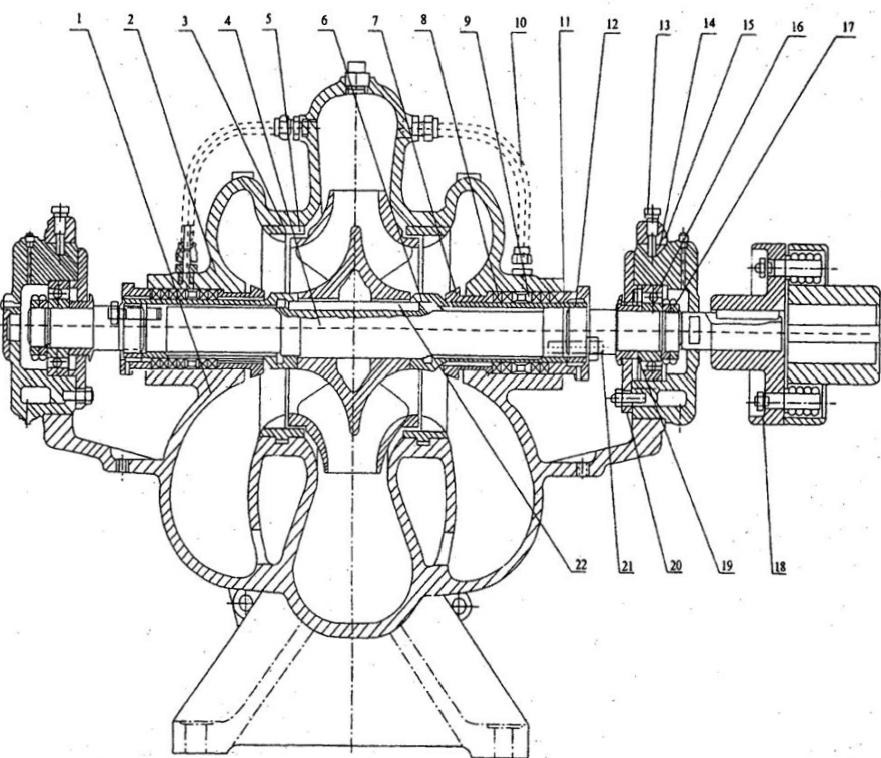

Structural Diagram
| 1 | Pump body |
| 2 | Pump cover |
| 3 | Impeller |
| 4 | Shaft |
| 5 | Double-suction seal ring |
| 6 | Shaft sleeve |
| 7 | Packing bag |
| 8 | Packing |
| 9 | Lantern ring |
| 10 | Water seal pipe |
| 11 | Gland (for packing) |
| 12 | Shaft sleeve nut |
| 13 | Set screw |
| 14 | Bearing housing |
| 15 | Bearing housing gland |
| 16 | Single-row radial ball bearing |
| 17 | Round nut |
| 18 | Coupling components |
| 19 | Bearing sleeve stop |
| 20 | Bearing end cap |
| 21 | Key |
| 22 | Stud bolt |
Anti-corrosion chemical process centrifugal pump is a type of pump used in the chemical industry for transferring, discharging, feeding, and lubricating various chemicals. It operates on the principle of centrifugal force, where the rotation of the impeller throws the liquid outward, creating a pressure difference that allows the liquid to flow from the inlet to the outlet.
THF fluoroplastic fluorine lined chemical centrifugal pump is a fluorine lining for excellent corrosion resistance. High - quality materials ensure durability. Efficient centrifugal action enables stable fluid transportation, suitable for various chemical processes.
Full plastic anti-corrosion abrasion resistance electric centrifugal pump —— it uses high - quality plastics for parts like the impeller and shell. This pump has excellent wear resistance, able to handle media with solid particles. It shows great corrosion - resistance to various chemicals. With a well - designed impeller, it operates efficiently with low noise and vibration, suitable for multiple industries.
ISG single suction vertical inline centrifugal pump is a compact, energy-efficient single-stage pump designed for HVAC, water supply, and industrial systems, offering quiet operation, easy installation, and reliable performance.
ISW single stage horizontal end suction centrifugal pump is a single-stage, single-suction design for efficient fluid transfer in pipelines, HVAC, and water supply systems.
S & SH-type single stage double suction centrifugal pump feature high efficiency, balanced axial thrust, and robust construction for large-flow industrial and municipal applications.
The wear-resistant and corrosion resistant slurry pump is engineered for transporting abrasive and corrosive slurries in mining, metallurgy, and chemical industries. With durable materials and robust construction, it ensures long service life, stable performance, and reduced maintenance.
