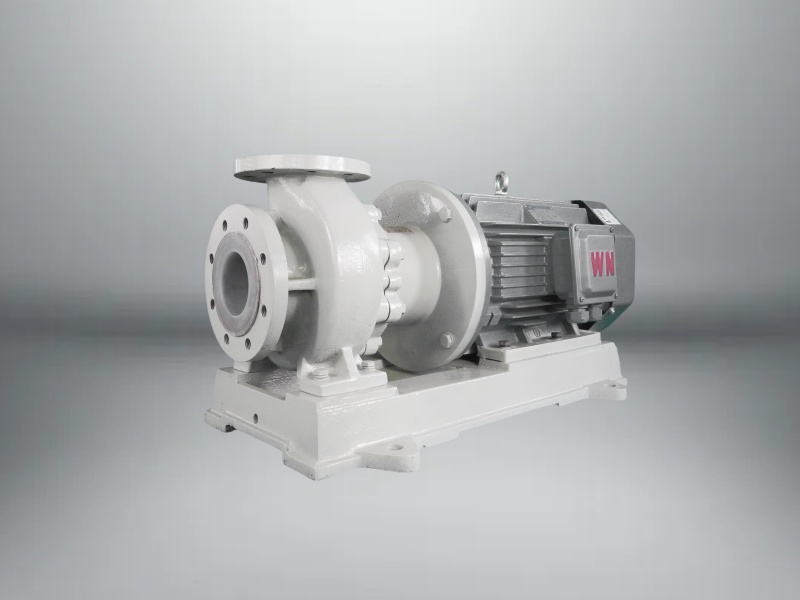

TCSF no-leakage lining fluorine magnetic drive pump is a remarkable device. It is lined with fluorine, which endows it with excellent corrosion resistance. The magnetic drive mechanism guarantees a leak-free operation, making it an ideal choice for the transfer of fluids in chemical and industrial applications.
Item No :
TCSFColor :
CustomizedPackage :
CustomizedMaterial :
FluoroplasticWorking Temp :
-20 to 120 ℃，Any concentration of acid-base mediumWorking Pressure :
1.6 MPaNo Leakage Lining Fluorine Magnetic Drive Pump
TCSF series fixed shaft no leakage lining fluorine magnetic drive pump is improved and optimized on the basis of the traditional magnetic pump, which changes the structure that the magnetic rotor drives the impeller to rotate through the pump shaft in the traditional magnetic pump structure. The structure is that the magnetic rotor directly drives the impeller to rotate, the shaft is fixed and does not rotate, and the shaft is only used as support
Product Advantages
1. The transmission efficiency and stability of the pump are improved, and the internal parts are reduced;
2. The degree of generalization is higher. The magnetic transmission part of the pump is configured according to the power;
3. Optimize the design of the magnetic circuit, so that the manufacturing cost of the pump is lower and the floor area is smaller.
Product Application
No leakage lining fluorine magnetic drive pump is widely used in petroleum, chemical industry, acid making, alkali making, smelting, rare earth, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling, etc.
Material List
| Part | Material | Part | Material | Part | Material |
| ① Pump body | HT200/F46/PFA | ⑥ Reinforcing sleeve | PEEK | ⑪ Bracket | HT200/ZG |
| ② Pump body mouth ring | Filled PTFE/Silicon carbide | ⑦ Seal ring | Fluororubber/Teflon | ⑫ Base | HT200/Channel steel |
| ③ Pump shaft | Silicon carbide/Pressureless | ⑧ Axle sleeve | SIC/Pressureless | ⑬ Motor | Per client request |
| ④ Impeller assembly | 45# F46/PFA/Permanent magnet | ⑨ Spacer bearing | SIC/Pressureless | ||
| ⑤ Isolation sleeve | F46/PTFE | ⑩ Outer rotor assembly | HT250/Permanent magnet |

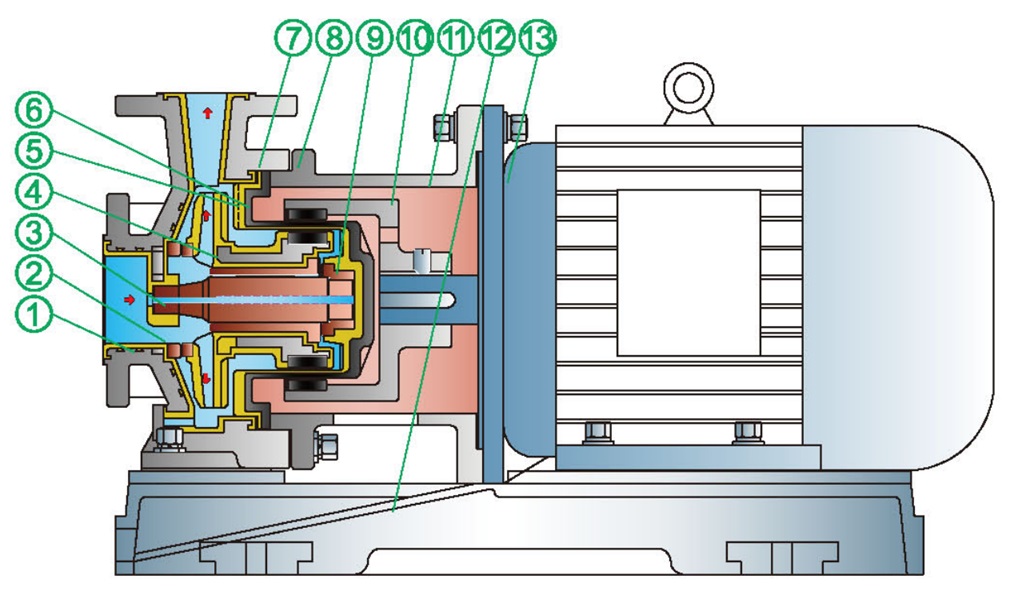

Structural Diagram
Performance Data
| Type | Rated power | Rated flow | Rated head | Voltage | Pump casing material | Suction |
| 32-20-115F | 3.2 | 380V | F4/F46/F50 | 32*20 | ||
| 40-25-120F | 6.3 | 380V | F4/F46/F50 | 40*25 | ||
| 40-40-120F | 6.3 | 380V | F4/F46/F50 | 40*40 | ||
| 50-32-120F | 12.5 | 380V | F4/F46/F50 | 50*32 | ||
| 25-20-125 | 1.1 | 2.5 | 20 | 380V | F4/F46/F50 | 25*20 |
| 25-20-160 | 2.2 | 2.5 | 32 | 380V | F4/F46/F50 | 25*20 |
| 25-20-200 | 4 | 2.5 | 50 | 380V | F4/F46/F50 | 25*20 |
| 25-20-250 | 7.5 | 2.5 | 80 | 380V | F4/F46/F50 | 25*20 |
| 32-20-125 | 1.1 | 3.2 | 20 | 380V | F4/F46/F50 | 32*20 |
| 32-20-160 | 3 | 3.2 | 32 | 380V | F4/F46/F50 | 32*20 |
| 32-20-200 | 4 | 3.2 | 50 | 380V | F4/F46/F50 | 32*20 |
| 32-20-250 | 7.5 | 3.2 | 80 | 380V | F4/F46/F50 | 32*20 |
| 40-25-125 | 2.2 | 6.3 | 20 | 380V | F4/F46/F50 | 40*25 |
| 40-25-160 | 3 | 6.3 | 32 | 380V | F4/F46/F50 | 40*25 |
| 40-25-200 | 5.5 | 6.3 | 50 | 380V | F4/F46/F50 | 40*25 |
| 40-25-250 | 11 | 6.3 | 80 | 380V | F4/F46/F50 | 40*25 |
| 40-25-315 | 6.3 | 125 | 380V | F4/F46/F50 | 40*25 | |
| 50-32-125 | 3 | 12.5 | 20 | 380V | F4/F46/F50 | 50*32 |
| 50-32-160 | 4 | 12.5 | 32 | 380V | F4/F46/F50 | 50*32 |
| 50-32-200 | 7.5 | 12.5 | 50 | 380V | F4/F46/F50 | 50*32 |
| 50-32-250 | 11 | 12.5 | 80 | 380V | F4/F46/F50 | 50*32 |
| 50-32-315 | 12.5 | 125 | 380V | F4/F46/F50 | 50*32 | |
| 65-50-125 | 4 | 25 | 20 | 380V | F4/F46/F50 | 65*50 |
| 65-50-160 | 5.5 | 25 | 32 | 380V | F4/F46/F50 | 65*50 |
| 65-40-200 | 11 | 25 | 50 | 380V | F4/F46/F50 | 65*40 |
| 65-40-250 | 18.5 | 25 | 80 | 380V | F4/F46/F50 | 65*40 |
| 65-40-315 | 37 | 25 | 125 | 380V | F4/F46/F50 | 65*40 |
| 80-65-125 | 7.5 | 50 | 20 | 380V | F4/F46/F50 | 80*65 |
| 80-65-160 | 11 | 50 | 32 | 380V | F4/F46/F50 | 80*65 |
| 80-50-200 | 15 | 50 | 50 | 380V | F4/F46/F50 | 80*50 |
| 80-50-250 | 30 | 50 | 80 | 380V | F4/F46/F50 | 80*50 |
| 80-50-315 | 45 | 50 | 125 | 380V | F4/F46/F50 | 80*50 |
| 100-80-125 | 11 | 100 | 20 | 380V | F4/F46/F50 | 100*80 |
| 100-80-160 | 18.5 | 100 | 32 | 380V | F4/F46/F50 | 100*80 |
| 100-65-200 | 30 | 100 | 50 | 380V | F4/F46/F50 | 100*65 |
| 100-65-250 | 45 | 100 | 80 | 380V | F4/F46/F50 | 100*65 |
| 100-65-315 | 75 | 100 | 125 | 380V | F4/F46/F50 | 100*65 |
| 125-80-160 | 30 | 160 | 32 | 380V | F4/F46/F50 | 125*80 |
| 125-100-200 | 55 | 200 | 50 | 380V | F4/F46/F50 | 125*100 |
| 125-100-250 | 75 | 200 | 80 | 380V | F4/F46/F50 | 125*100 |
| 125-100-315 | 22 | 100 | 125 | 380V | F4/F46/F50 | 125*100 |
| 125-100-400 | 37 | 100 | 50 | 380V | F4/F46/F50 | 125*100 |
| 150-125-250 | 22 | 200 | 20 | 380V | F4/F46/F50 | 150*125 |
| 150-125-315 | 45 | 200 | 32 | 380V | F4/F46/F50 | 150*125 |
| 150-125-400 | 55 | 200 | 50 | 380V | F4/F46/F50 | 150*125 |
| 200-150-250 | 55 | 400 | 20 | 380V | F4/F46/F50 | 200*150 |
| 200-150-315 | 75 | 400 | 32 | 380V | F4/F46/F50 | 200*150 |
| 200-150-400 | 110 | 400 | 50 | 380V | F4/F46/F50 | 200*150 |

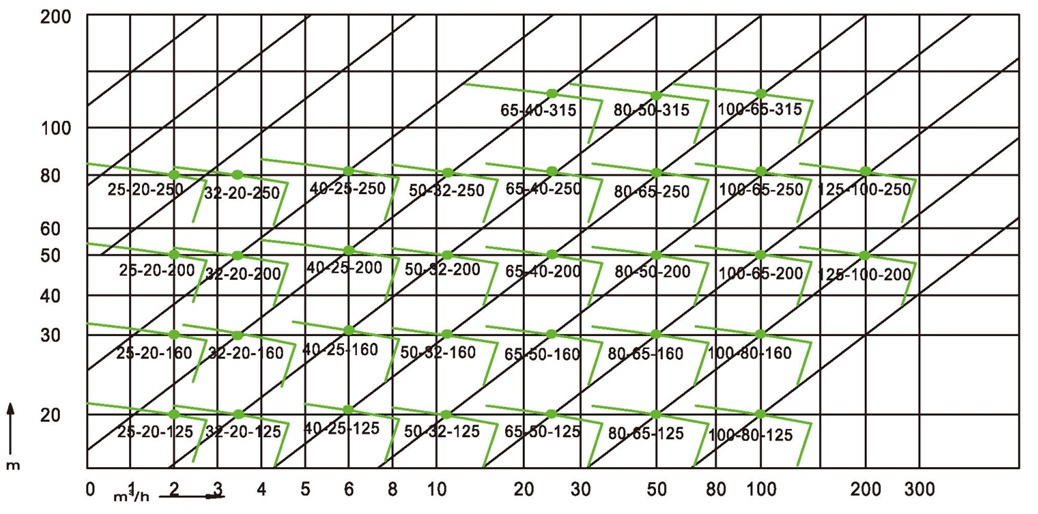

Performance Range
Design pressure: 1.6 MPa, Flow: 0.75~460 m³/ h , Lift: 5~125 m, Power: 0.55~110 KW.
Applicable temperature: -20~120 ℃ , acid - base medium of any concentration.

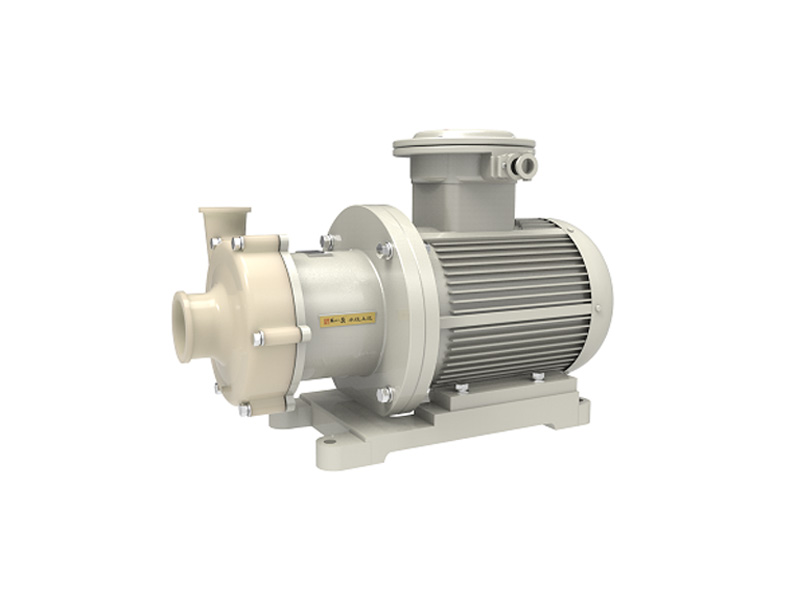

TCH no-leakage stainless steel magnetic pump is characterized by a full-seal design, which effectively eliminates the possibility of leakage. Constructed from stainless steel, it exhibits excellent corrosion resistance. The high-quality magnets incorporated within the pump ensure a reliable magnetic drive, making it well-suited for application in a diverse range of industries.
