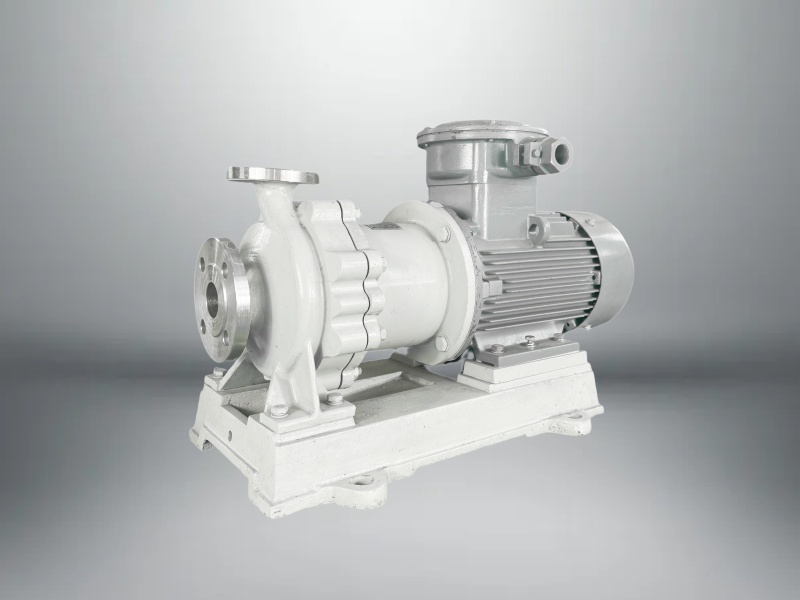

TC no leakage magnetic driven pump belongs to the new generation of centrifugal pumps. It is composed of a pump, a magnetic actuator, and a motor. Torque is transferred via magnetic force, thereby preventing leaks. This type of pump is corrosion-resistant and applicable to various industries such as the chemical and pharmaceutical industries.
Item No :
TCOrder(MOQ) :
1Color :
CustomziedPackage :
CustomziedMaterial :
SteelWorking Temp :
-60 to 300 ℃Working Pressure :
1.6 to 6.3 MPaNo Leakage Corrosion Resistant Magnetic Drive Chemical Pump
No leakage corrosion resistant magnetic drive chemical pump is a new type of pump that uses the principle of modem magneto mechanics,according to GB/T25140-2010 technical conditions for shaftless rotary power pump (class II), which is equivalent to ISO 15783-2002 technical specification for shaftless rotary power pump(class II), and with reference to API 685-2000 sealless centrifugal pump for petroleum, heavy chemical and natural gas industries, and uses the magnetic drive of permanent magnet to realize the contactless transmission of torque, because the medium is enclosed in the static isolation sleeve, the purpose of pumping the medium without leakage is achieved, and the problem of shaft seal leakage of mechanical drive pump is completely solved.
Product Advantages
1. The magnet adopts ferrite magnet, Nd-Fe-Band samarium cobalt, which has good magnetism, high temperature resistance and no demagnetization;
2.The shaft sleeve and sliding bearing are made of high wear-resistant silicon carbide, graphite, tetrafluoro and other materials, and equipped with lubrication grooves to effectively ensure the service life of the pump.
Product Application
No leakage corrosion resistant magnetic drive chemical pump is widely used to transport corrosive liquids in the production processes of petroleum, chemical industry, alkali making, smelting, rare earth, pesticide, dye, medicine, paper making, electroplating, electrolysis and so on.
Material List
| Part | Material | Part | Material | Part | Material |
| ①pump body | 304/316/316L | ⑥thrust collar | hard alloy | ⑪back nut | 304/316/316L |
| ②impeller nut | 304/316/316L | ⑦pump cover | 304/316/316L | ⑫out magnet | permanent magnet /HT200 |
| ③impeller | 304/316/316L | ⑧gasket | PTFE | ⑬connecting | HT200 |
| ④main shaft | 304/316/316L | ⑨distance sleeve | 304/316/316L | ⑭motor | As clients requested |
| ⑤shaft sleeve | GRAPHITE/SIC | ⑩inner magnet | permanent magnet /304/316/316L | ⑮base plate | HT200 |

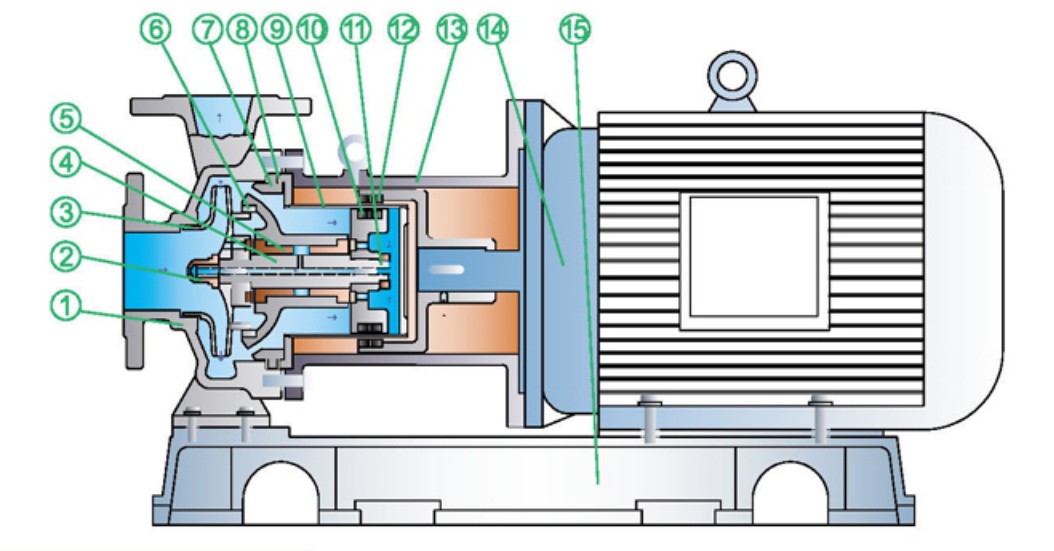

Structural Diagram
Performance Data
| Type | Rated power | Rated Flow | Rated Head | Voltage | Pump casing material | Suction |
| 25-20-125 | 2.2 | 2.5 | 20 | 380V | 304/316/316L | 25*20 |
| 25-20-160 | 3 | 2.5 | 32 | 380V | 304/316/316L | 25*20 |
| 25-20-200 | 5.5 | 2.5 | 50 | 380V | 304/316/316L | 25*20 |
| 25-20-250 | 11 | 2.5 | 80 | 380V | 304/316/316L | 25*20 |
| 32-20-125 | 2.2 | 3.2 | 20 | 380V | 304/316/316L | 32*20 |
| 32-20-160 | 3 | 3.2 | 32 | 380V | 304/316/316L | 32*20 |
| 32-20-200 | 5.5 | 3.2 | 50 | 380V | 304/316/316L | 32*20 |
| 32-20-250 | 11 | 3.2 | 80 | 380V | 304/316/316L | 32*20 |
| 40-25-125 | 2.2 | 6.3 | 20 | 380V | 304/316/316L | 40*25 |
| 40-25-160 | 3 | 6.3 | 32 | 380V | 304/316/316L | 40*25 |
| 40-25-200 | 5.5 | 6.3 | 50 | 380V | 304/316/316L | 40*25 |
| 40-25-250 | 11 | 6.3 | 80 | 380V | 304/316/316L | 40*25 |
| 50-32-125 | 3 | 12.5 | 20 | 380V | 304/316/316L | 50*32 |
| 50-32-160 | 4 | 12.5 | 32 | 380V | 304/316/316L | 50*32 |
| 50-32-200 | 7.5 | 12.5 | 50 | 380V | 304/316/316L | 50*32 |
| 50-32-250 | 15 | 12.5 | 80 | 380V | 304/316/316L | 50*32 |
| 65-50-125 | 4 | 25 | 20 | 380V | 304/316/316L | 65*50 |
| 65-50-160 | 7.5 | 25 | 32 | 380V | 304/316/316L | 65*50 |
| 65-40-200 | 15 | 25 | 50 | 380V | 304/316/316L | 65*40 |
| 65-40-250 | 18.5 | 25 | 80 | 380V | 304/316/316L | 65*40 |
| 80-65-125 | 7.5 | 50 | 20 | 380V | 304/316/316L | 80*65 |
| 80-65-160 | 15 | 50 | 32 | 380V | 304/316/316L | 80*65 |
| 80-50-200 | 18.5 | 50 | 50 | 380V | 304/316/316L | 80*50 |
| 100-80-125 | 15 | 100 | 20 | 380V | 304/316/316L | 100*80 |
| 100-80-160 | 18.5 | 100 | 32 | 380V | 304/316/316L | 100*80 |

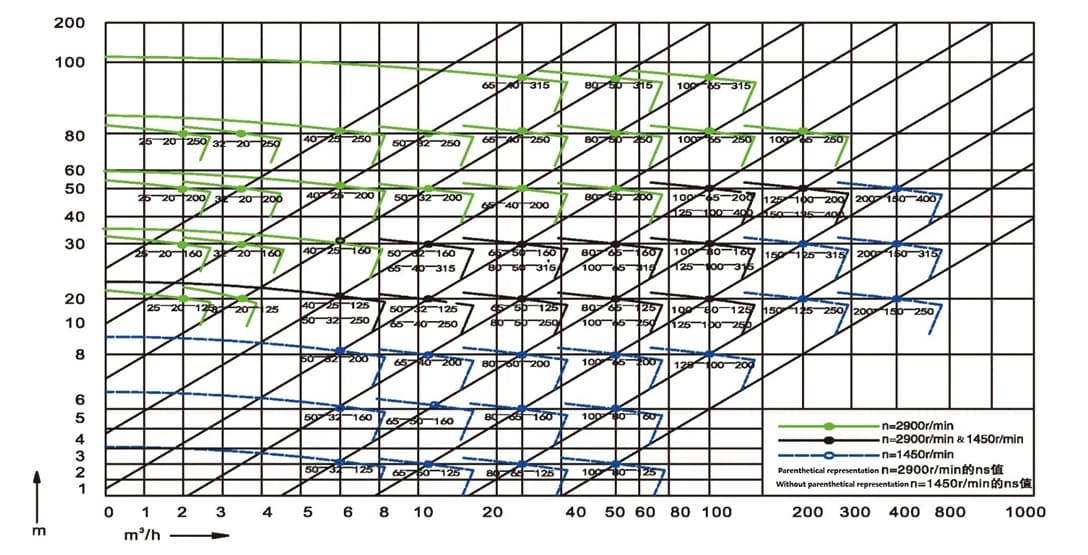

Performance Range
Design pressure: 1.6 ~ 6.3MPa, Flow: 0.75 ~ 460m³/h, Lift: 5 ~ 125m, Power: 0.55 ~ 110KW
Applicable temperature: -60 ~ 300℃, new materials are adopted, and the temperature resistance can reach 450℃.
