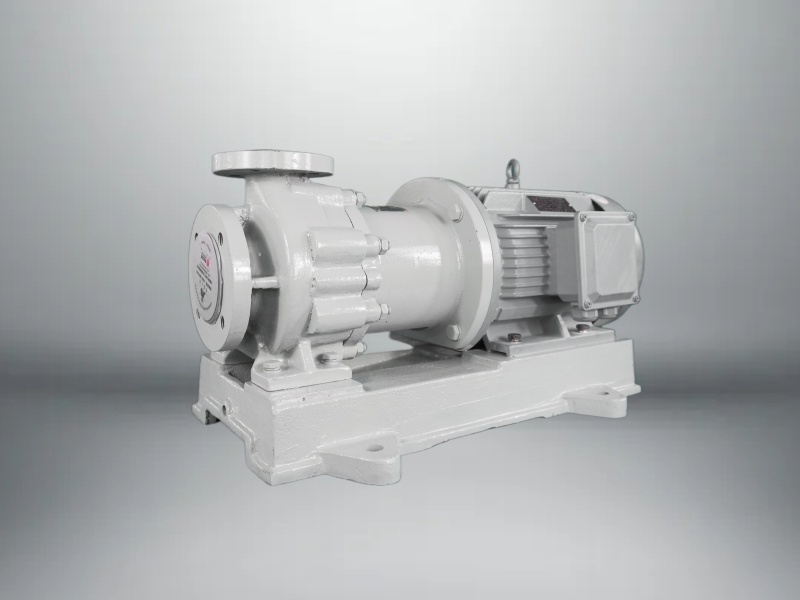

No leakage fluorine lined magnetic drive pump is characterized by its high corrosion resistance, which is attributed to the fluorine lining. The magnetic drive mechanism ensures a hermetic seal, preventing any leakage, and making it suitable for a wide range of fluid transfer applications.
Item No :
TCFOrder(MOQ) :
1Color :
CustomizedPackage :
CustomizedMaterial :
HT200 lined F46Working Temp :
-20 to 120°C; -20 to 80°CWorking Pressure :
1.6 MPaNo Leakage Fluorine Lined Magnetic Drive Pump
TCF no leakage fluorine lined magnetic drive pump is a new type of pump that applies the principle of modern magneto mechanics and uses the magnetic transmission of permanent magnet to realize the non-contact transmission of torque. All the over flow parts are made of fluoroplastic, which can transport corrosive media such as acid, alkali and oxidant with any concentration(strength).
Product Advantages
1.The pump body is made of cast iron, carbon steel, 304 and 316L lined with fluoroplastics, and the inner rotor, pump cover, impeller,isolation sleeve and other overflow parts are made of metal inserts wrapped with fluoroplastics;
2.The magnet is a new type of permanent magnet with good magnetism, high temperature resistance and no demagnetization;
3.The shaft sleeve and sliding bearing are made of high wear- resistant silicon carbide, graphite, tetrafluoro and other materials, and equipped with lubrication grooves to effectively ensure the service life of the pump. The seal adopts closed static seal, which completely solves the medium leakage, eliminates the need for independent lubrication and cooling water, and reduces the energy consumption.
Product Application
No leakage fluorine lined magnetic drive pump is widely used in the transportation of corrosive liquids in the production processes of petroleum, chemical industry, acid making, alkali making, smelting, rare earth, pesticide, dye, medicine, paper making, electroplating, electrolysis and pickling, especially for the transportation of flammable, explosive, volatile, toxic, strong acid-base, organic agent and precious liquid.
Material List
| Part | Material | Part | Material | Part | Material |
| ①Pump body | HT200 lined F46 | ⑤Axle sleeve | Impregnated graphite/SIC | ⑨Rear nut | Tetrafluoro |
| ②impeller nut | HT200 lined F46 | ⑥Pump cover | HT200 lined F46 | ⑩External magnetic | Permanent magnetic/HT200 lined F46 |
| ③impeller | F50 | ⑦Spacer sleeve | PEEK/F46 | ⑪ Connecting frame | HT200 |
| ④shaft | SIC | ⑧Internal magnetic | Permenant magnetic/HT200 lined F46 | ⑫ Electric motor | Customized |

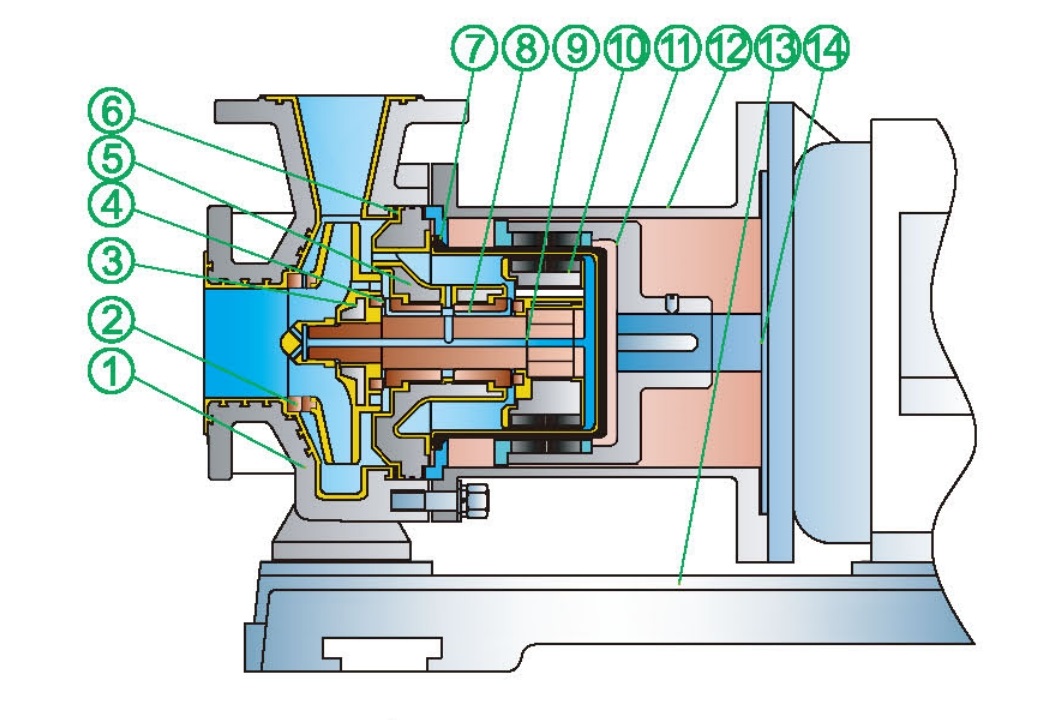

Structural Diagram
Performance Data
| Type | Rated power | Rated flow | Rated head | Voltage | Pump casing material | Suction |
| 40-25-125 | 2.2 | 6.3 | 20 | 380V | HT200 lined F46 | 40*25 |
| 40-25-160 | 3 | 6.3 | 32 | 380V | HT200 lined F46 | 40*25 |
| 40-25-200 | 5.5 | 6.3 | 50 | 380V | HT200 lined F46 | 40*25 |
| 40-25-250 | 11 | 6.3 | 80 | 380V | HT200 lined F46 | 40*25 |
| 40-25-315 | 6.3 | 125 | 380V | HT200 lined F46 | 40*25 | |
| 50-32-125 | 2.2 | 12.5 | 20 | 380V | HT200 lined F46 | 50*32 |
| 50-32-160 | 4 | 12.5 | 32 | 380V | HT200 lined F46 | 50*32 |
| 50-32-200 | 7.5 | 12.5 | 50 | 380V | HT200 lined F46 | 50*32 |
| 50-32-250 | 15 | 12.5 | 80 | 380V | HT200 lined F46 | 50*32 |
| 50-32-315 | 12.5 | 125 | 380V | HT200 lined F46 | 50*32 | |
| 65-50-125 | 4 | 25 | 20 | 380V | HT200 lined F46 | 65*50 |
| 65-50-160 | 5.5 | 25 | 32 | 380V | HT200 lined F46 | 65*50 |
| 65-40-200 | 11 | 25 | 50 | 380V | HT200 lined F46 | 65*40 |
| 65-40-250 | 18.5 | 25 | 80 | 380V | HT200 lined F46 | 65*40 |
| 65-40-315 | 37 | 25 | 125 | 380V | HT200 lined F46 | 65*40 |
| 80-65-125 | 7.5 | 50 | 20 | 380V | HT200 lined F46 | 80*65 |
| 80-65-160 | 11 | 50 | 32 | 380V | HT200 lined F46 | 80*65 |
| 80-50-200 | 18.5 | 50 | 50 | 380V | HT200 lined F46 | 80*50 |
| 80-50-250 | 30 | 50 | 80 | 380V | HT200 lined F46 | 80*50 |
| 80-50-315 | 55 | 50 | 125 | 380V | HT200 lined F46 | 80*50 |
| 100-80-125 | 11 | 100 | 20 | 380V | HT200 lined F46 | 100*80 |
| 100-80-160 | 18.5 | 100 | 32 | 380V | HT200 lined F46 | 100*80 |
| 100-65-200 | 30 | 100 | 50 | 380V | HT200 lined F46 | 100*65 |
| 100-65-250 | 45 | 100 | 80 | 380V | HT200 lined F46 | 100*65 |
| 100-65-315 | 75 | 100 | 125 | 380V | HT200 lined F46 | 100*65 |
| 125-80-160 | 30 | 160 | 32 | 380V | HT200 lined F46 | 125*80 |
| 125-100-200 | 55 | 100 | 50 | 380V | HT200 lined F46 | 125*100 |
| 125-100-250 | 75 | 100 | 80 | 380V | HT200 lined F46 | 125*100 |
| 125-100-315 | 22 | 100 | 125 | 380V | HT200 lined F46 | 125*100 |
| 125-100-400 | 37 | 100 | 50 | 380V | HT200 lined F46 | 150*125 |
| 150-125-250 | 22 | 200 | 20 | 380V | HT200 lined F46 | 150*125 |
| 150-125-315 | 45 | 200 | 32 | 380V | HT200 lined F46 | 150*125 |
| 150-125-400 | 55 | 200 | 50 | 380V | HT200 lined F46 | 150*125 |
| 200-150-250 | 55 | 400 | 20 | 380V | HT200 lined F46 | 200*150 |
| 200-150-315 | 75 | 400 | 32 | 380V | HT200 lined F46 | 200*150 |
| 200-150-400 | 110 | 400 | 50 | 380V | HT200 lined F46 | 200*150 |
Performance Range
Design pressure: 1.6 MPa, Flow: 0.5~240 m³/h, Head: 20~125 m, Power: 1.1~55 KW.
Applicable temperature:
①Fluoroplastic material acid-base medium of any concentration -20~120°C;
②Engineering plastic material, dilute acid and alkali medium -20~80°C.
TCH no-leakage stainless steel magnetic pump is characterized by a full-seal design, which effectively eliminates the possibility of leakage. Constructed from stainless steel, it exhibits excellent corrosion resistance. The high-quality magnets incorporated within the pump ensure a reliable magnetic drive, making it well-suited for application in a diverse range of industries.
TC no leakage magnetic driven pump belongs to the new generation of centrifugal pumps. It is composed of a pump, a magnetic actuator, and a motor. Torque is transferred via magnetic force, thereby preventing leaks. This type of pump is corrosion-resistant and applicable to various industries such as the chemical and pharmaceutical industries.
No leakage fluorine lined magnetic drive pump is characterized by its high corrosion resistance, which is attributed to the fluorine lining. The magnetic drive mechanism ensures a hermetic seal, preventing any leakage, and making it suitable for a wide range of fluid transfer applications.
TCSF no-leakage lining fluorine magnetic drive pump is a remarkable device. It is lined with fluorine, which endows it with excellent corrosion resistance. The magnetic drive mechanism guarantees a leak-free operation, making it an ideal choice for the transfer of fluids in chemical and industrial applications.
