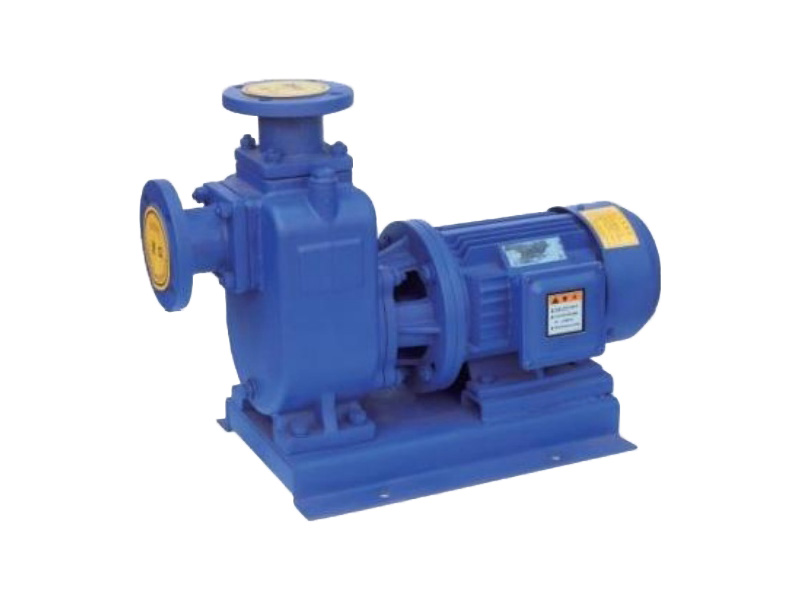

Engineered for reliability, the ZXL direct-coupled self-priming centrifugal pump provides maintenance-free operation and efficient automatic priming. It is a versatile solution for a wide range of applications, from agricultural water transfer to industrial fluid handling.
Item No :
ZXLOrder(MOQ) :
1Payment :
L/C T/T westernunion Alipay PaypalProduct Origin :
ChinaColor :
CustomizedShipping Port :
shanghai shenzhen guangzhouLead Time :
please contact CP +8613696510409Weight :
please contact 504893184@qq.comPackage :
CustomizedMaterial :
Cast iron/Stainless steelDirect-Coupled Self-Priming Centrifugal Pump
The ZXL Direct-Connected Self-Priming Pump Series is an innovative product developed based on advanced domestic and international technologies. As a pioneering achievement in China, it benchmarks against leading international standards with its technical performance, demonstrating significant application potential and promising market prospects.
Product Advantages
Engineered to streamline fluid transfer in challenging environments, the ZXL direct-coupled pump eliminates complex installation. Its innovative design requires no check or foot valves and achieves reliable self-priming with minimal fluid. The compact, vibration-free unit features a 30% smaller footprint, wear-resistant tungsten carbide seals, and an IP54-rated motor, making it the ideal, low-maintenance solution for outdoor industrial and agricultural use.
Structural Diagram
| 1 | Motor | Directly coupled to the pump for power transmission. Uses branded motors (CYZ-A-L model adopts explosion-proof motors). |
| 2 | Pump Shaft | Coaxial with the motor. Features an extended shaft design ensuring concentricity for smooth operation (noise/vibration-free). Chrome-plated for enhanced durability. |
| 3 | Water Deflector Ring | Prevents motor flooding due to seal leakage. |
| 4 | Mechanical Seal | Constructed with stainless steel, tungsten carbide, and fluororubber. Balanced high-temperature/pressure-resistant design ensures leak-free operation, zero shaft wear, and no scale buildup. |
| 5 | Pump Cover | Connects the pump body and motor. |
| 6 | Pump Body | Designed with optimized hydraulic chambers (discharge/suction/gas-liquid separation). Features mounting feet for stable installation. |
| 7 | Impeller | High-efficiency hydraulic design for reliable performance. |
| 8 | Seal Ring | Seals the joint between impeller and pump body. |
| 9 | Bottom Cover Plate | Allows sediment removal when opened. |
| 10 | Drain Plug | Drains residual liquid during prolonged pump inactivity. |
| 11 | Baseplate | Provides structural connection and supports vibration isolator installation. |
| 12 | Discharge Nozzle | Connects to outlet pipelines. |
| 13 | Water Fill Valve | Replenishes cavity liquid when insufficient. |
| 14 | Check Valve | Prevents backflow upon pump shutdown. |
| 15 | Inlet Nozzle | Connects to intake pipelines. |
