Safe fluid transfer in the chemical and pharmaceutical industries is achieved with the ZCQ pump, which combines leak-free magnetic drive operation, corrosion resistance, and efficient self-priming capabilities.
Item No :
ZCQOrder(MOQ) :
1Payment :
L/C T/T Alipay Paypal wesernunionProduct Origin :
ChinaColor :
CustomizedShipping Port :
shanghai shenzhen guangzhouLead Time :
please contact CP +8613696510409Weight :
please contact 504893184@qq.comPackage :
CustomizedSelf-Priming Magnetic Drive Pump
The ZCQ magnetic drive pump is an advanced, leak-proof evolution of the CQ type model. It features a static seal design and construction from highly corrosion-resistant materials (including stainless steel, aluminum ceramics, and PTFE graphite). This pump eliminates traditional drainage issues, operates without a foot valve or groundwater source, and delivers a self-priming lift of up to 4 meters, fully compliant with international standards.
Product Advantages
The ZCQ pump boasts a compact structure, a smooth exterior, and a small footprint. Its operation is characterized by low noise, high reliability, and ease of maintenance. This pump is widely employed across diverse industries—including petroleum, chemical, pharmaceutical, electroplating, paint, food, and scientific research—to safely and effectively handle acids, alkalis, oils, rare and valuable liquids, hazardous and volatile substances, and cooling fluids. It is an ideal solution for applications where leakage is a critical concern.

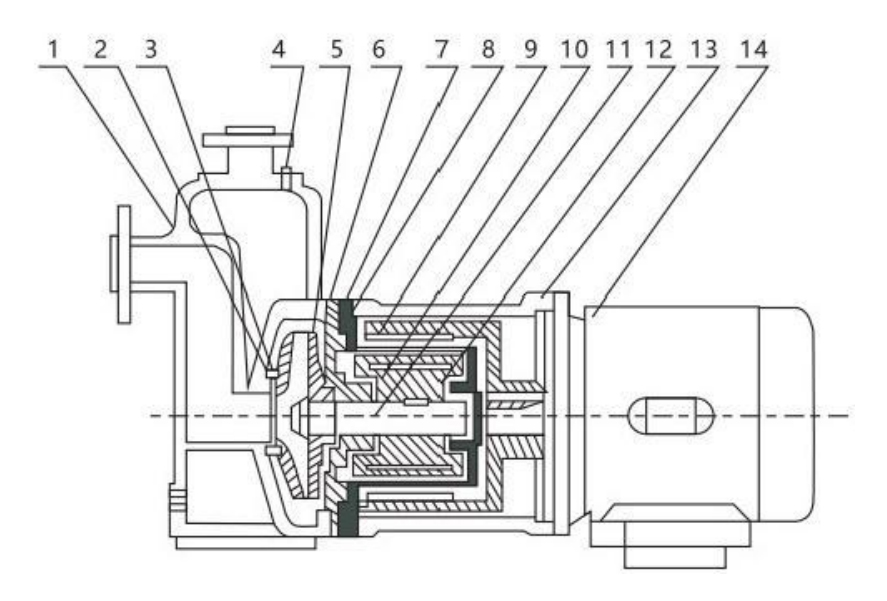

Structural Diagram
| 1 | Pump Body | 5 | Impeller | 9 | Outer Magnet Assembly | 13 | Connecting Frame |
| 2 | Static Ring | 6 | Sealing Ring | 10 | Inner Magnet Assembly | 14 | Motor |
| 3 | Dynamic Ring | 7 | Partition Plate | 11 | Pump Shaft | ||
| 4 | Water Filling Bolt | 8 | Isolation Layer | 12 | Shaft Sleeve |
